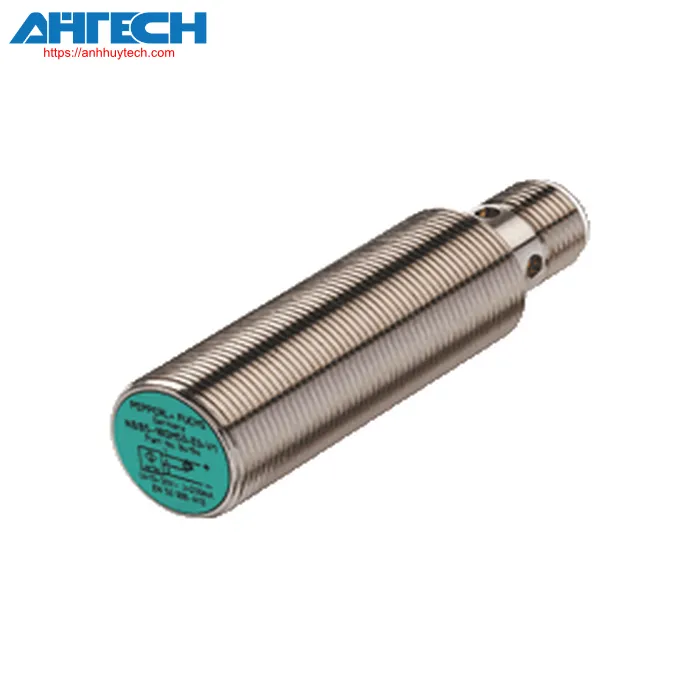

Inductive Sensor Pepperl+Fuchs NBB8-18GM60-B3-V1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB8-18GM60-B3-V1
| Overall specifications | ||
|---|---|---|
| transition function | Programmable normally open/closed (NO/NC) | |
| Output configuration | AS-Connection point | |
| Specified functioning distance | 8 mm | |
| mounting | flush | |
| Guaranteed functioning distance | 0 ... 6.48 mm | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.4 | |
| diminution factor r304 | 0.7 | |
| diminution factor rBrass | 0.5 | |
| Node type | Standard node | |
| AS-Connection point standards | V2.1 | |
| Mandatory gateway specification | = V2.0 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| Operational voltage | 26.5 ... 31.9 V through AS-i bus system | |
| commutation frequency | 0 ... 200 Hz | |
| Deadband | 1 ... 15 % typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| No-load input current | = 25 mA | |
| State indication for switching | bi-color LED, yellow | |
| Fault indicator | dual-LED, crimson | |
| Parameters related to functional safety | ||
| MTTFd | 926 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Pin count | 4 | |
| Measurements | ||
| Length | 75 mm | |
| Diameter | 18 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBB8-18GM60-B3-V1
