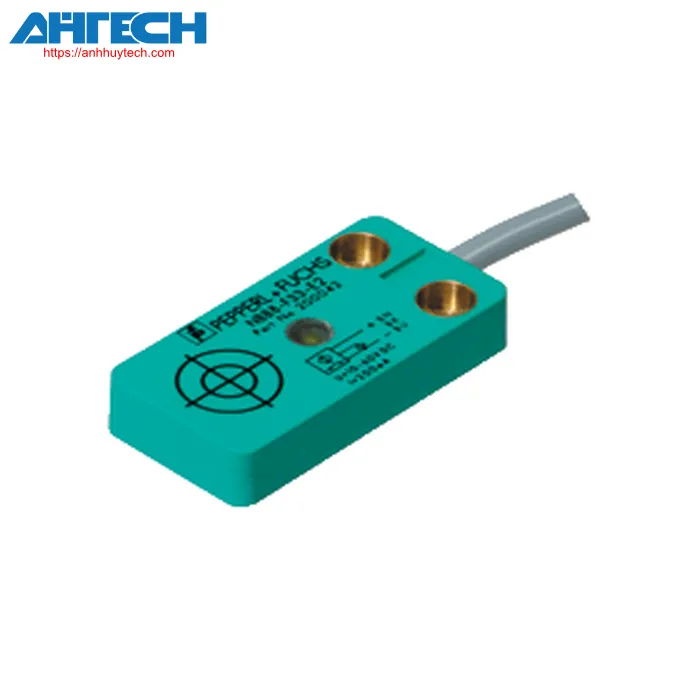

Inductive Sensor Pepperl+Fuchs NBN10-F33-E1-M

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		Typically closed (NC)
Output configuration		NPN
Specified functioning distance		10 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 8.1 mm
diminution factor r_Al		0.3
diminution factor r_Cu		0.2
diminution factor r₃₀₄		0.6
Output configuration		3-wire
Rated specifications
Operational voltage		5 ... 60 V
commutation frequency		0 ... 200 Hz
Deadband		typ. 5 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2 V
Operational current		0 ... 200 mA
Non-conducting current		0 ... 0.1 mA
No-load input current		= 10 mA
Delay time prior to availability		= 80 ms
State indication for switching		Yellow indicator LED
Parameters related to functional safety
MTTF_d		1150 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
CCC certification		Approved by China Compulsory Certification (CCC)
E1 certification approval		10R-04
Environmental conditions
Ambient temperature		-40 ... 85 °C (-40 ... 185 °F)
Ambient storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical characteristics
Linkage method		cable PUR , 2 m
cross section of the core		0.5 mm²
Housing material		PBT
detection surface		PBT
Protection等级		IP67 / IP69K
Measurements
	Height	25 mm
	Width	50 mm
	Length	10 mm
Note		Fastening torque: 5 Nm
