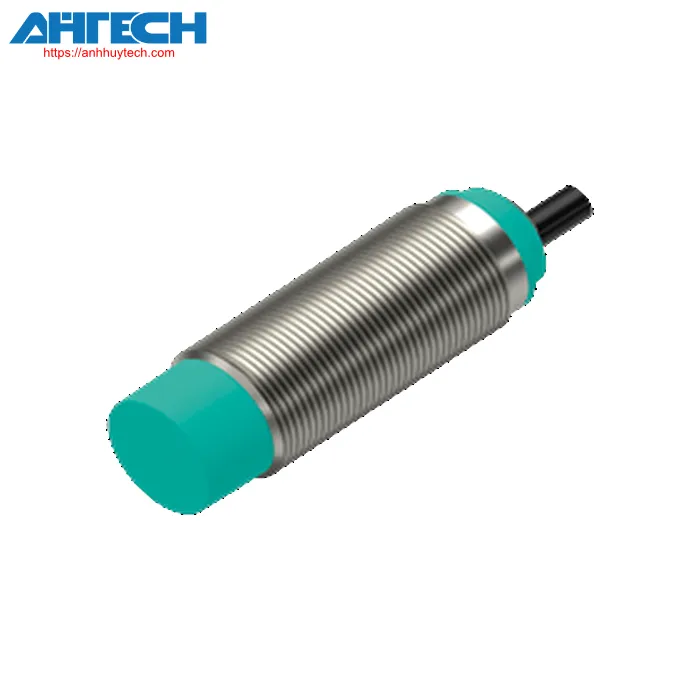

Inductive Sensor Pepperl+Fuchs NBN12-18GM50-A0
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN12-18GM50-A0
| Overall specifications | ||
|---|---|---|
| transition function | supplementary | |
| Output configuration | NPN | |
| Specified functioning distance | 12 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 9.72 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 36 mm x 36 mm x 1 mm |
|
| diminution factor rAl | 0.49 | |
| diminution factor rCu | 0.46 | |
| diminution factor r304 | 0.75 | |
| diminution factor rBrass | 0.55 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 36 V | |
| commutation frequency | 0 ... 1300 Hz | |
| Deadband | typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 1 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | max. 20 µA | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | = 10 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1248 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Compliance | ||
| PWIS compliance | VDMA 24364-C1/T100°C-W | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II | |
| Nominal insulation voltage | 36 V | |
| Rated surge voltage withstand capability | 500 V | |
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Marine certification | DNVGL TAA00003AK | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | brass, coated with white bronze | |
| detection surface | PBT , green | |
| Protection等级 | IP65 / IP66 / IP67 / IP68 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 4.3 mm ± 0.15 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PVC | |
| Color | black | |
| Core count | 4 | |
| cross section of the core | 0.34 mm2 | |
| Length | 2 m | |
| Mass | 115 g | |
| Measurements | ||
| Length | 56 mm | |
| Diameter | 18 mm | |
| Mounting | with fasteners, M18 | |
| Fastening torque | 0 ... 30 Nm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN12-18GM50-A0
Download PDFRELATED PRODUCTS
