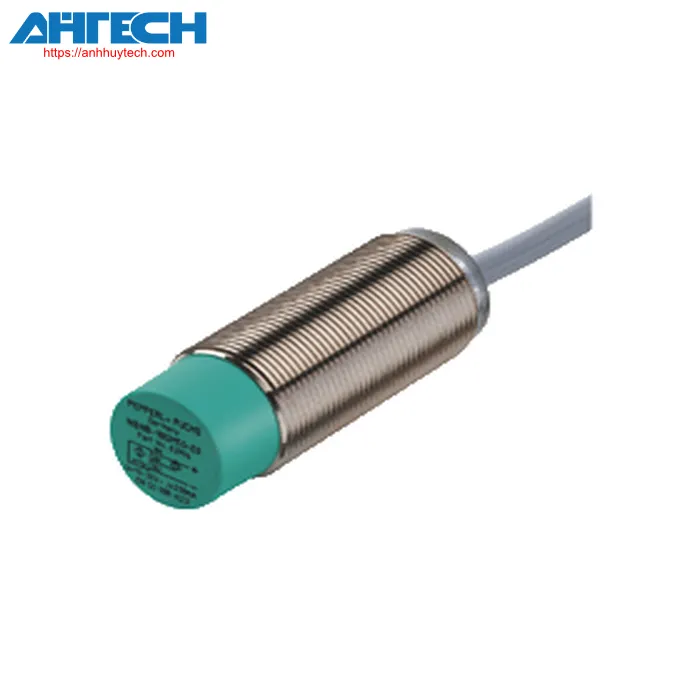

Inductive Sensor NBN12-18GM50-E2-M-150MM-3DT04
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN12-18GM50-E2-M-150MM-3DT04
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 12 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 9.72 mm | |
| diminution factor rAl | 0.5 | |
| diminution factor rCu | 0.4 | |
| diminution factor r304 | 0.7 | |
| diminution factor rBrass | 0.5 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 60 V | |
| commutation frequency | 0 ... 1500 Hz | |
| Deadband | type 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| Inductive surge protection | yes | |
| Overvoltage protection | yes | |
| voltage loss | = 2 V | |
| Nominal insulation voltage | 60 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load input current | = 7 mA | |
| Delay time prior to availability | = 220 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1085.5 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | permanent cable with plug | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP68 / IP69K | |
| Connector device | ||
| Linkage unit | Deutsch connector DT04-3P-CE02 Deutsch block W3P Deutsch connector 1060-16-0622 |
|
| Cable | ||
| Cable thickness | 6 mm ± 0.2 mm | |
| Curvature radius | > 6 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Core count | 3 | |
| cross section of the core | 0.75 mm2 | |
| Length | L = 125 mm | |
| Mass | 62 g | |
| Measurements | ||
| Length | 55 mm | |
| Diameter | 18 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN12-18GM50-E2-M-150MM-3DT04
