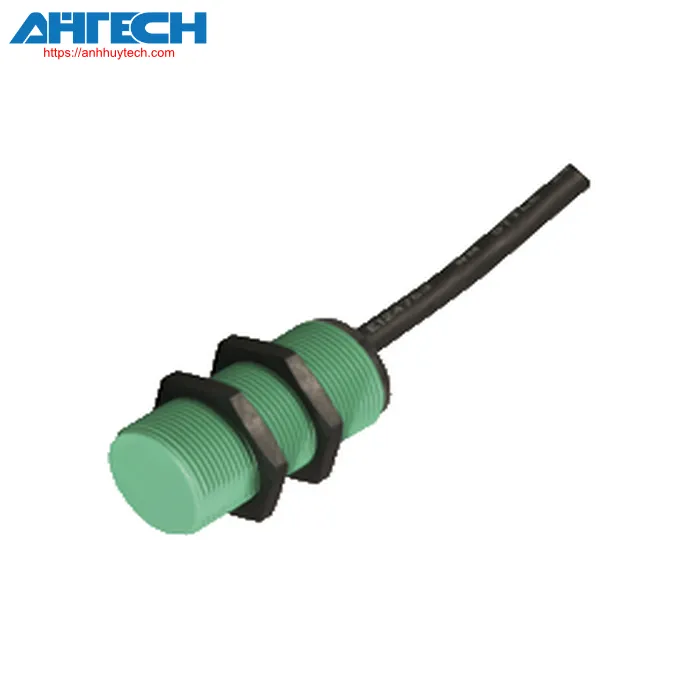

Inductive Sensor Pepperl+Fuchs NBN15-30GK60-UR-5M
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN15-30GK60-UR-5M
| Overall specifications | ||
|---|---|---|
| transition function | switching contact | |
| Output configuration | relay | |
| Specified functioning distance | 15 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.37 | |
| diminution factor r304 | 0.73 | |
| Output configuration | Relay output | |
| Mechanical lifespan | No load: 2 x 107 operations Full load: 1 x 105 switching cycles | |
| Rated specifications | ||
| Deadband | 1 ... 12 % typ. 10 % | |
| Polarity reversal protection | reverse polarity resistant | |
| Overcurrent protection | no | |
| Nominal functioning current | < 50 mA AC/DC | |
| State indication for switching | LED, red 360° | |
| Electrical parameters | ||
| Nominal functioning voltage | 20 ... 132 V AC/DC | |
| Output | ||
| Switching voltage level | max 28 V DC , 250 V AC | |
| Switching capacity | 6 A, AC/DC, resistive load | |
| Conversion power | max 180 W | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CSA certification | cCSAus Listed, Intended for General Use | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | PBT | |
| detection surface | PBT | |
| Protection等级 | IP68 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 7.6 mm ± 0.25 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PVC | |
| Color | black | |
| Core count | 5 | |
| cross section of the core | 0.75 mm2 | |
| Length | 5 m | |
| Mass | 536 g | |
| Measurements | ||
| Length | 60 mm | |
| Diameter | 30 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN15-30GK60-UR-5M
Download PDF
