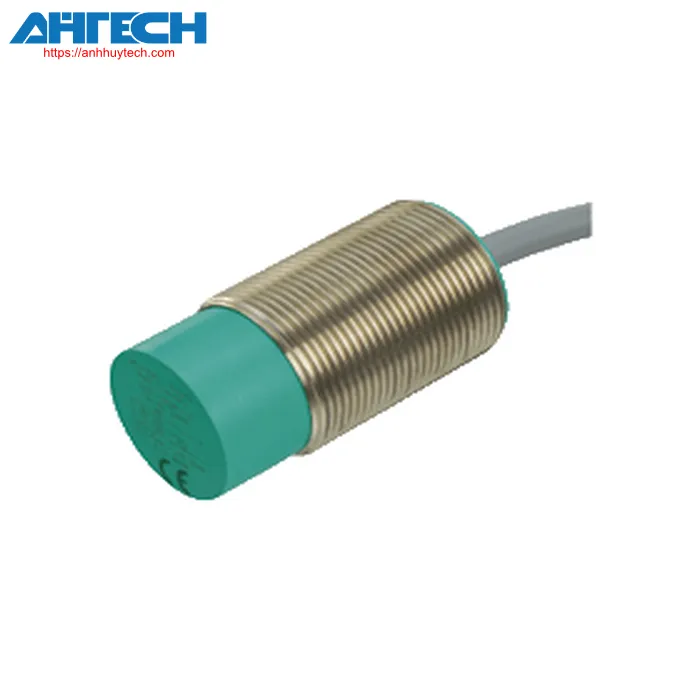

Inductive Sensor Pepperl+Fuchs NBN15-30GM60-I3-5M

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
Output configuration		Analog current signal output
mounting		non-flush
Output configuration		DC
Measurement range		5 ... 15 mm
Output configuration		3-wire
Rated specifications
Operational voltage		15 ... 30 V DC
Repeatability accuracy		0 ... 200 µm
No-load input current		= 12 mA
Analog signal output
Output configuration		0 ... 20 mA
Gradient of output characteristic		2 mA / mm
Non-linearity error		= ± 5 % of full-scale value
Load resistance		= 500 O
Rate of current increase
	0 ... 20 mA	= 17.5 A/s
	20 ... 0 mA	= 16.4 A/s
Temperature variation		= ± 0.15 %/K of the measured value
Residual voltage ripple		± 125 µA
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		cable PVC , 5 m
cross section of the core		0.75 mm²
Housing material		Stainless steel grade V2A
detection surface		PBT
Protection等级		IP67
Cable
	Cable thickness	6.4 mm ± 0.2 mm
	Curvature radius	> 10 x cable diameter
Measurements
	Length	60 mm
	Diameter	30 mm
