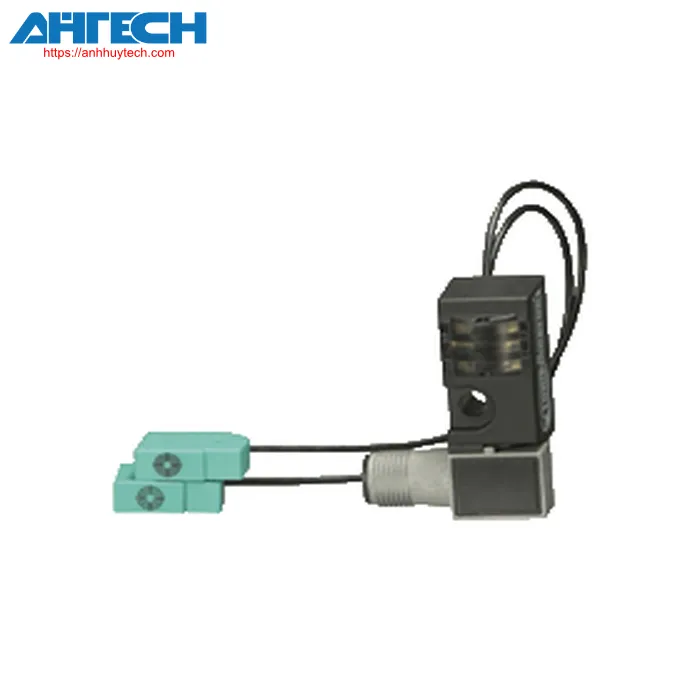

Inductive Sensor NBN2-F581-160S6-E10-V1
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN2-F581-160S6-E10-V1
| Overall specifications | ||
|---|---|---|
| transition function | 2 x normally open (NO) | |
| Output configuration | NPN | |
| Specified functioning distance | 2 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 1.62 mm | |
| diminution factor rAl | 0.35 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 0 ... 25 Hz | |
| Deadband | 3 ... 20 % typ. 5 % | |
| Polarity reversal protection | yes | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V DC |
|
| Operational current | 0 ... 100 mA | |
| Non-conducting current | = 10 µA |
|
| No-load input current | = 35 mA | |
| Uniform magnetic field | 100 mT | |
| Oscillating magnetic field | 100 mT | |
| Voltage functioning indicator | LED green | |
| State indication for switching | switching state "close" = LED red (S2) Transition state "open" = yellow LED (S1) |
|
| Parameters related to functional safety | ||
| MTTFd | 1445 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Flexible cable, housing-sensor | 160 mm ± 5 mm, PUR (without halogens) | |
| Housing material | amplifier; PBT, PA6 + GD-ZN AL4 oscillators; PBT |
|
| Protection等级 | IP67 | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Pin count | 4 | |
| Measurements | ||
| Height | 18 mm | |
| Width | 18 mm | |
| Length | 47 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27210801 |
| ECLASS 12.0 | 27210801 |
| ECLASS 11.0 | 27210801 |
| ECLASS 10.0.1 | 27210801 |
| ECLASS 9.0 | 27210801 |
| ECLASS 8.0 | 27210801 |
| ECLASS 5.1 | 27210801 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN2-F581-160S6-E10-V1
