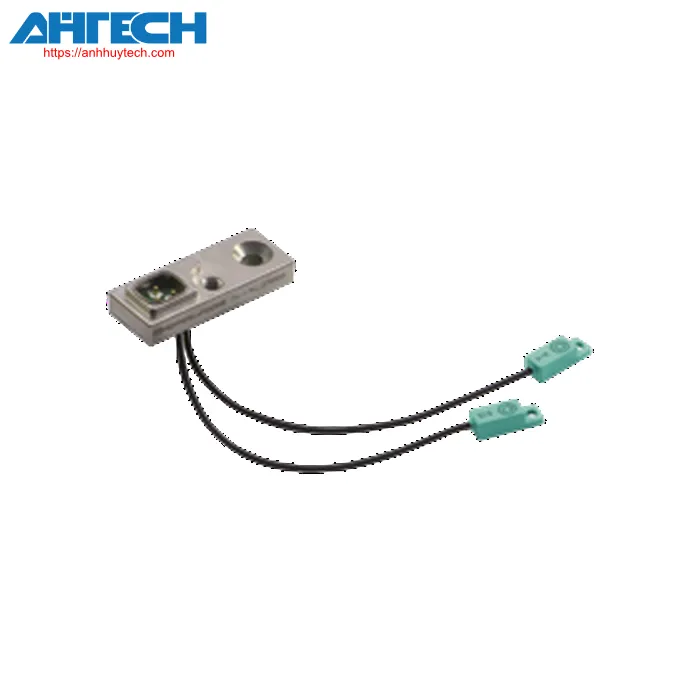

Inductive Sensor Pepperl+Fuchs NBN2-F58xxA3-850S3
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN2-F58xxA3-850S3
| Item Specification | ||
|---|---|---|
| Satellite module | ||
| Overall specifications | ||
|---|---|---|
| Specified functioning distance | 2 mm | |
| mounting | non-flush | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| Environmental conditions | ||
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) | |
| Ambient storage temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | Spring-loaded contacts, 3 pins flexible PUR leads (free from halogens) L = 850 mm - 0 / + 10 |
|
| Housing material | PA 6 / Diecast zinc | |
| Protection等级 | IP65 | |
| Measurements | ||
| Height | 8 mm | |
| Width | 18 mm | |
| Length | 47 mm | |
| Note | only compatible with the amplifier unit from the NBxx-F58A3x3 series | |
