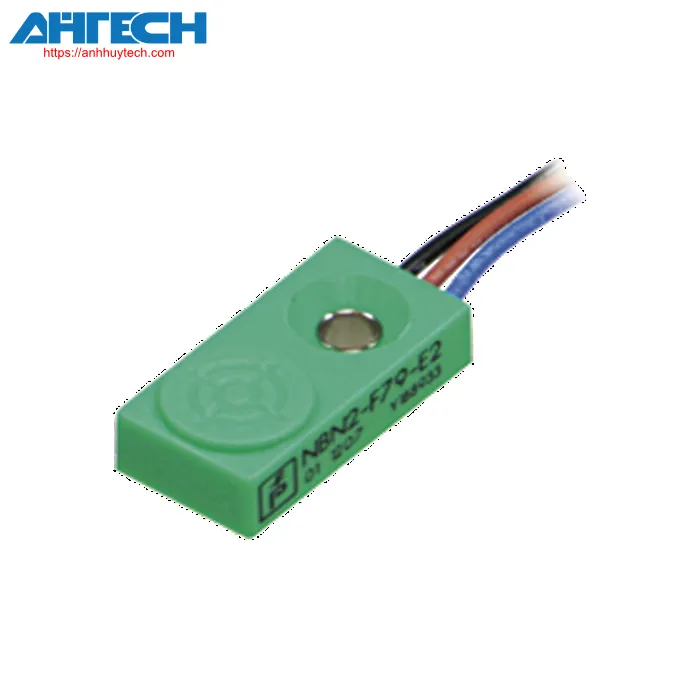

Inductive Sensor Pepperl+Fuchs NBN2-F79-E2-Y188933

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		PNP
Specified functioning distance		2 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 1.8 mm
diminution factor r_Al		0.3
diminution factor r_Cu		0.2
diminution factor r₃₀₄		0.7
Output configuration		3-wire
Rated specifications
Operational voltage		5 V -5% +10%
commutation frequency		0 ... 800 Hz
Deadband		typ. 5 %
Polarity reversal protection		no
Overcurrent protection		pulsing
voltage loss		= 1.5 V
Operational current		0 ... 100 mA
Non-conducting current		= 10 µA
No-load input current		= 15 mA
Delay time prior to availability		= 20 ms
Parameters related to functional safety
MTTF_d		4830 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
Environmental conditions
Ambient temperature		15 ... 35 °C (59 ... 95 °F)
Mechanical characteristics
Linkage method		flexible wires PVC, 280 mm, stranded
Linkage unit		Molex coupling housing 51021-0300 Molex crimp connector 50058-8000
cross section of the core		0.08 mm²
Housing material		PA
detection surface		PA
Protection等级		IP67
Measurements
	Height	4.7 mm
	Width	8 mm
	Length	16 mm
