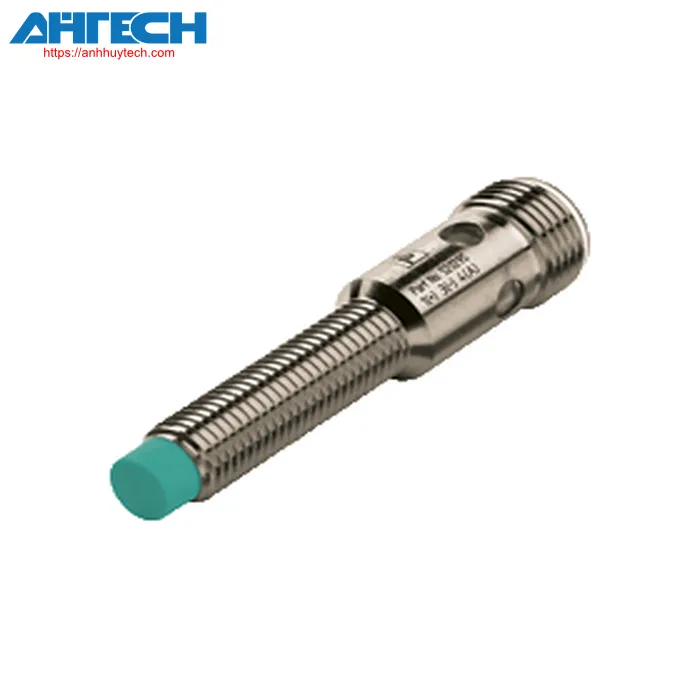

Inductive Sensor Pepperl+Fuchs NBN3-8GM30-E0-V1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN3-8GM30-E0-V1
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | NPN | |
| Specified functioning distance | 3 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 2.43 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm |
|
| diminution factor rAl | 0.5 | |
| diminution factor rCu | 0.45 | |
| diminution factor r304 | 0.75 | |
| diminution factor rBrass | 0.55 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 30 V | |
| commutation frequency | 0 ... 4500 Hz | |
| Deadband | typ. 5% | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 1.5 V | |
| Operational current | 0 ... 100 mA | |
| Non-conducting current | 0 ... 0.2 mA | |
| No-load input current | = 10 mA | |
| Delay time prior to availability | = 100 ms | |
| State indication for switching | Yellow multihole LED | |
| Parameters related to functional safety | ||
| MTTFd | 960 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector M12 x 1, 4-contact | |
| Housing material | brass with a nickel coating | |
| detection surface | LCP | |
| Protection等级 | IP65 / IP66 / IP67 | |
| Measurements | ||
| Length | 55 mm | |
| Diameter | 8 mm | |
| Overview information | ||
| Contents of shipment | 2 hex nuts provided | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN3-8GM30-E0-V1
Download PDF
