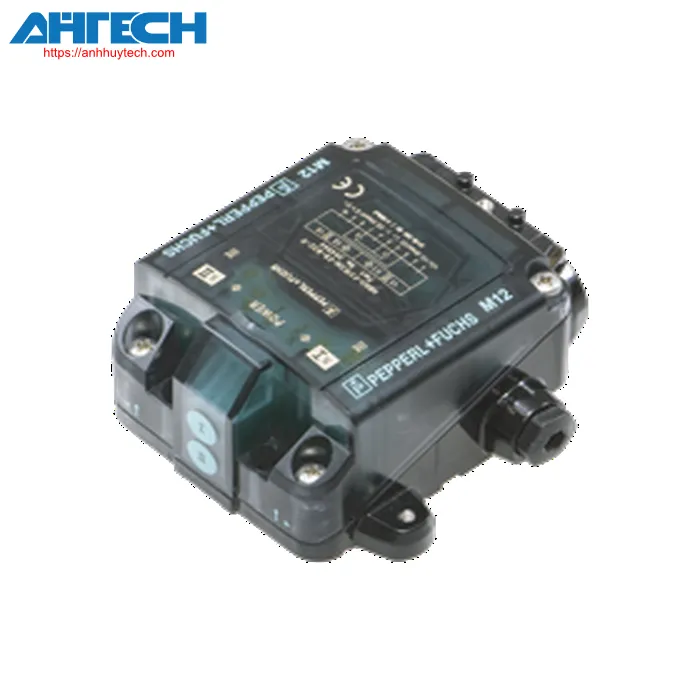

Inductive Sensor NBN3-F31K2M-E8-B33-S
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN3-F31K2M-E8-B33-S
| Overall specifications | ||
|---|---|---|
| transition function | 2 x normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 2.5 mm | |
| mounting | for surface mounting | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 2.05 mm | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V | |
| commutation frequency | 0 ... 100 Hz | |
| Deadband | typ. 5 % | |
| Polarity reversal protection | all interfaces | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| Operational current | 0 ... 100 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 0.1 µA | |
| No-load input current | = 25 mA | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Valve status indicator | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 605 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Valve configuration | ||
| Voltage | max. 32 V DC | |
| Current | max. 240 mA | |
| Overcurrent protection | no | |
| Polarity reversal protection | Yes, with inverted output, the LED is non-functional, thus providing additional power for the solenoid valve | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 75 °C (-40 ... 167 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Connection point (system side) | screw terminal, M20 x 1.5 cable connector | |
| cross section of the core (system side) | 1.5/2.5 mm2 flexible/solid | |
| Linkage (actuator side) | 4-pin, M12 x 1 connector socket | |
| Housing material | durable, translucent polycarbonate (PC) designed for outdoor applications | |
| enclosure base | powder coated aluminum | |
| Protection等级 | IP66 / IP67 / IP69 | |
| Fastening torque for securing screws | 4 Nm ... 5 Nm | |
| Fastening torque, enclosure screws | = 2 Nm | |
| Fastening torque for cover screws | 1.5 Nm | |
| Fastening torque, grounding screw | 1.5 Nm | |
| Torque for tightening, cable gland | M20 x 1.5 ; max. 11 Nm M12 x 1 max. 3 Nm |
|
| Fastening torque for stopping plug | 1 Nm | |
| Measurements | ||
| Height | 53 mm | |
| Width | 100 mm | |
| Length | 106 mm | |
| Fastening torque | plug , 1 Nm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ECLASS 11.0 | 27220501 |
| ECLASS 10.0.1 | 27220501 |
| ECLASS 9.0 | 27220501 |
| ECLASS 8.0 | 27220501 |
| ECLASS 5.1 | 27220501 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN3-F31K2M-E8-B33-S
Download PDF
