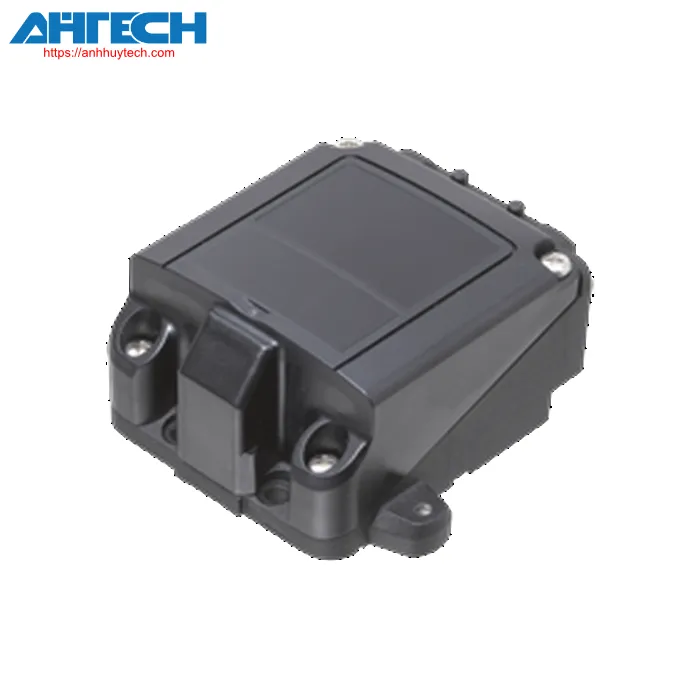

Inductive Sensor NBN3-F31K2M-Z8L-B13-S-3G-3D
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN3-F31K2M-Z8L-B13-S-3G-3D
| Overall specifications | ||
|---|---|---|
| transition function | 2 x normally open (NO) | |
| Output configuration | Two-wire system with minimal off-state current | |
| Specified functioning distance | 2.5 mm | |
| mounting | for surface mounting | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 2.05 mm | |
| Output configuration | 2x 2-wire | |
| Rated specifications | ||
| Operational voltage | 6 ... 30 V | |
| commutation frequency | 0 ... 100 Hz | |
| Deadband | typ. 0.5 mm | |
| Polarity reversal protection | reverse polarity resistant | |
| Overcurrent protection | no | |
| voltage loss | = 6 V | |
| Operational current | 4 ... 100 mA | |
| Non-conducting current | 100 ... 200 µA typ. 160 µA | |
| Parameters related to functional safety | ||
| MTTFd | 684 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Valve configuration | ||
| Voltage | max. 32 V DC | |
| Current | max. 240 mA | |
| Overcurrent protection | no | |
| Polarity reversal protection | Yes, with inverted output, the LED is non-functional, thus providing additional power for the solenoid valve | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Gc | IECEx TUR 20.0062X | |
| Equipment protection rating Dc | IECEx TUR 20.0068X | |
| ATEX certification | ||
| Equipment protection rating Gc | TÜV 20 ATEX 8592 X | |
| Equipment protection rating Dc | TÜV 20 ATEX 8598 X | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 75 °C (-40 ... 167 °F), limitation for operation in hazardous environments, refer to instruction manual | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | screw terminals | |
| Connection point (system side) | screw terminals, M20 x 1.5 cord grip, effective thread length 13.5 mm, maximum screw-in depth 13.5 mm ground connection using an earthing screw exclusively for wire cross-section 4 mm2, utilize solid or stranded wire with wire end ferrules |
|
| Linkage (actuator side) | terminal block Cable entry point M20 x 1.5 |
|
| Housing material | PC (Makrolon reinforced with glass fibers) | |
| enclosure base | powder coated aluminum | |
| Protection等级 | IP67; supplementary degree of protection IP66/IP69 with BT65-F31K2-RG-EN-01 and SH-F31K2-B13 | |
| Terminal setup | ||
| Number | 10 | |
| Linkage method | For the connection of copper conductors with a 7 mm strip length Fastening torque range of 0.5 ... 0.6 Nm |
|
| Type | Pluggable screw terminal block | |
| Terminal rating | Conductor cross-section 0.25 ... 2.5 mm2 , adaptable/rigid For multi-wire connection: two conductors of identical cross-section per 0.25 ... 1 mm2 |
|
| Fastening torque for securing screws | 4 Nm ... 5 Nm | |
| Fastening torque, enclosure screws | 1.5 Nm | |
| Fastening torque for cover screws | 1.5 Nm | |
| Fastening torque, grounding screw | 1.5 Nm | |
| Torque for tightening, cable gland | M20 x 1.5 ; max. 11 Nm | |
| Fastening torque for stopping plug | 2 Nm | |
| Measurements | ||
| Height | 53 mm | |
| Width | 100 mm | |
| Length | 106 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
