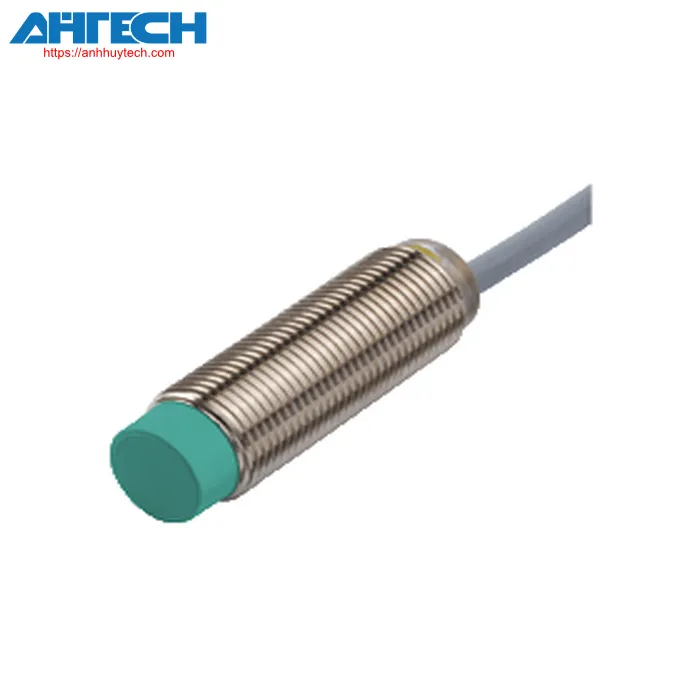

Inductive Sensor Pepperl+Fuchs NBN4-12GS40-Z4L
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN4-12GS40-Z4L
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | Two-wire system with minimal off-state current | |
| Specified functioning distance | 4 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 3.24 mm | |
| Actual sensing distance | 3.6 ... 4.4 mm typ. | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.36 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| Operational voltage | 4 ... 30 V | |
| commutation frequency | 0 ... 700 Hz | |
| Deadband | 1 ... 10 % typ. 5 % | |
| Polarity reversal protection | yes | |
| Overcurrent protection | pulsing | |
| voltage loss | = 4 V | |
| Operational current | 2 ... 30 mA | |
| Minimal functioning current | 2 mA | |
| Non-conducting current | = 200 µA | |
| State indication for switching | omnidirectional LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1536 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 2.8 mm ± 0.1 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Core count | 2 | |
| cross section of the core | 0.14 mm2 | |
| Length | 2 m | |
| Mass | 46 g | |
| Measurements | ||
| Length | 40 mm | |
| Diameter | 12 mm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
