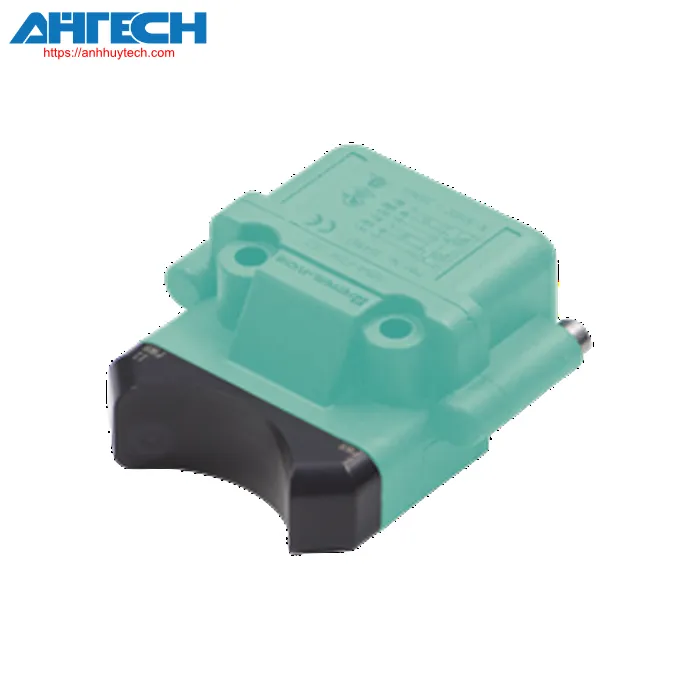

Inductive Sensor Pepperl+Fuchs NBN4-F25K-2Z4L
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN4-F25K-2Z4L
| Overall specifications | ||
|---|---|---|
| transition function | 2 x normally open (NO) | |
| Output configuration | Two-wire system with minimal off-state current | |
| Specified functioning distance | 4 mm | |
| mounting | surface mountable | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 3.24 mm | |
| Actual sensing distance | 3.6 ... 4.4 mm typ. | |
| diminution factor rAl | 0.6 | |
| diminution factor rCu | 0.45 | |
| diminution factor r304 | 1 | |
| diminution factor rSt37 | 1.2 | |
| Output configuration | 2x 2-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 30 V DC | |
| commutation frequency | 0 ... 500 Hz | |
| Deadband | typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 4.5 V | |
| Operational current | 4 ... 100 mA | |
| Non-conducting current | 120 ... 200 µA typ. 175 µA at 25 °C | |
| Delay time prior to availability | = 100 ms | |
| State indication for switching | LED, yellow | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Connection point (system side) | screw terminal, M20 x 1.5 cable connector | |
| Housing material | PBT | |
| detection surface | PC | |
| Protection等级 | IP67 | |
| Mass | 98 g | |
| Fastening torque for securing screws | M5 x 40 : 2.7 Nm | |
| Fastening torque, enclosure screws | M4 x 25 : 2 Nm | |
| Measurements | ||
| Height | 37.5 mm | |
| Width | 52 mm | |
| Length | 69 mm | |
| Note | Attached to the mechanical drive | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ECLASS 11.0 | 27220501 |
| ECLASS 10.0.1 | 27220501 |
| ECLASS 9.0 | 27220501 |
| ECLASS 8.0 | 27220501 |
| ECLASS 5.1 | 27220501 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN4-F25K-2Z4L
Download PDF
