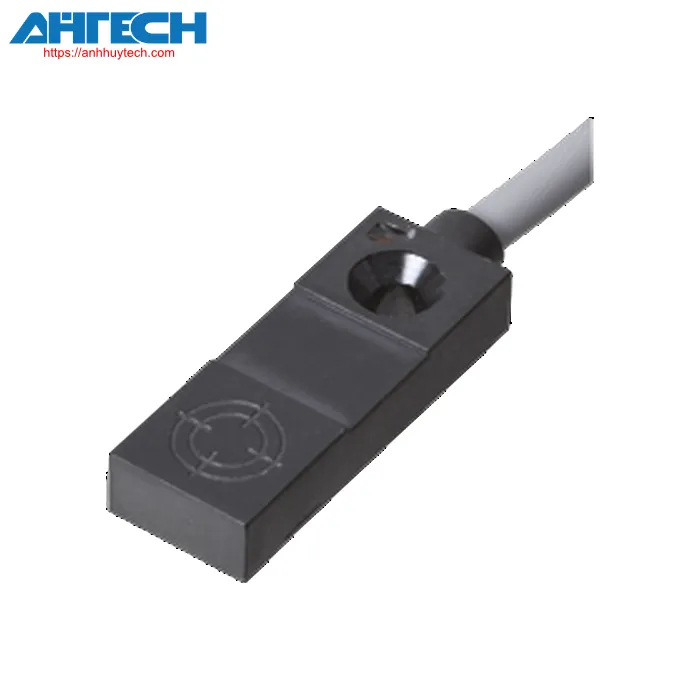

Inductive Sensor NBN4-F29-E3-0,82M-V3
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN4-F29-E3-0,82M-V3
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | PNP | |
| Specified functioning distance | 4 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 3.24 mm | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 4.75 ... 30 V DC | |
| commutation frequency | 0 ... 1000 Hz | |
| Deadband | typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| Operational current | 0 ... 100 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load input current | = 10 mA | |
| Delay time prior to availability | = 5 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 2133 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | permanent cable with plug | |
| Housing material | PPS | |
| detection surface | PPS | |
| Protection等级 | IP67 | |
| Connector device | ||
| Threading process | M8 x 1 | |
| Pin count | 3 | |
| Cable | ||
| Cable thickness | 3.5 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PVC | |
| Core count | 3 | |
| cross section of the core | 0.14 mm2 | |
| Length | 820 mm | |
| Measurements | ||
| Height | 6 mm | |
| Width | 10 mm | |
| Length | 27 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN4-F29-E3-0,82M-V3
