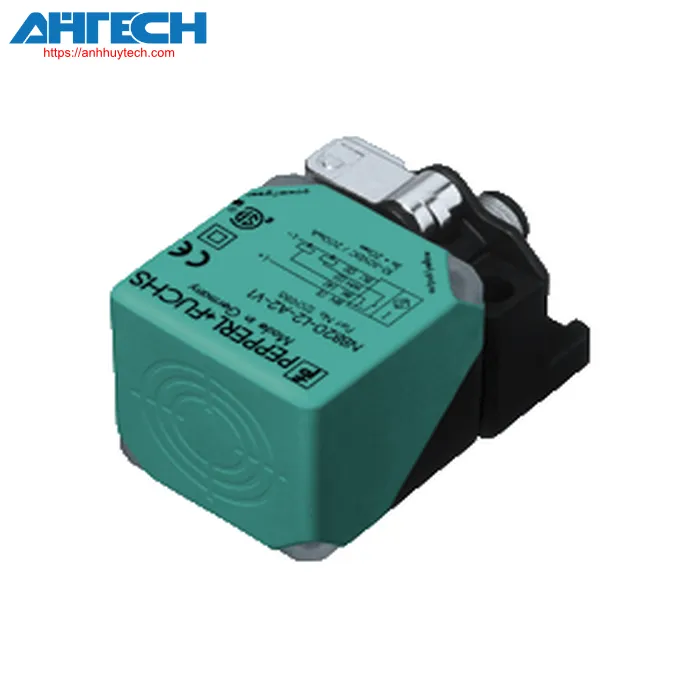

Inductive Sensor Pepperl+Fuchs NBN40-L2-A0-V1-M
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN40-L2-A0-V1-M
| Overall specifications | ||
|---|---|---|
| transition function | supplementary | |
| Output configuration | NPN | |
| Specified functioning distance | 40 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 32.4 mm | |
| Actual sensing distance | 36 ... 44 mm | |
| diminution factor rAl | 0.34 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.81 | |
| diminution factor rSt37 | 1 | |
| diminution factor rBrass | 0.4 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 60 V DC | |
| commutation frequency | 0 ... 150 Hz | |
| Deadband | typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 2 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA | |
| No-load input current | = 20 mA | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 670 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CSA certification | cCSAus Listed, Intended for General Use | |
| CCC certification | Approved by China Compulsory Certification (CCC) | |
| E1 certification approval | 10R-04 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
|
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | PA-GF35 | |
| detection surface | PA-GF35 | |
| Protection等级 | IP69K | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Pin count | 4 | |
| Mass | 155 g | |
| Measurements | ||
| Height | 40 mm | |
| Width | 40 mm | |
| Length | 67 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN40-L2-A0-V1-M
Download PDF
