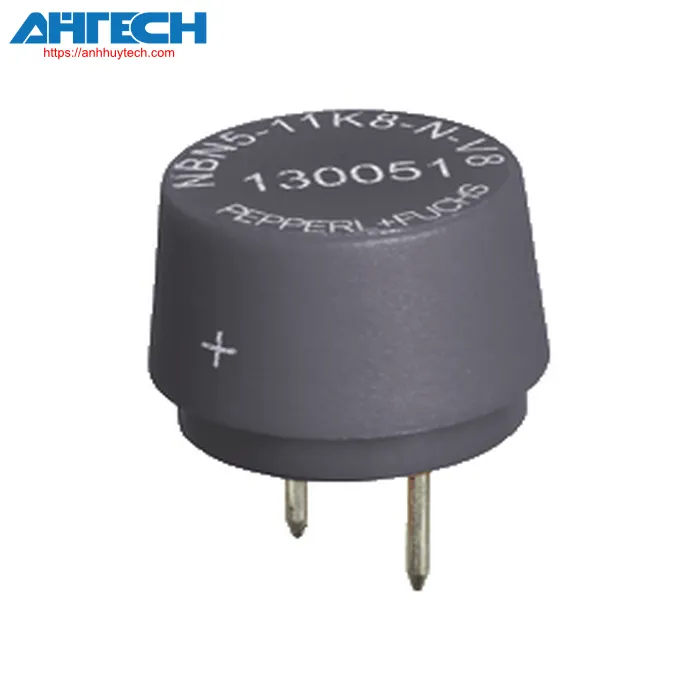

Inductive Sensor Pepperl+Fuchs NBN5-11K8-N-V8
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN5-11K8-N-V8
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 5 mm | |
| mounting | non-flush | |
| Guaranteed functioning distance | 0 ... 4.05 mm | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 15 V | |
| commutation frequency | 0 ... 2000 Hz | |
| Deadband | 0.05 ... 0.75 | |
| Current draw | ||
| Measurement plate not found | min. 2.7 mA | |
| Measuring plate identified | = 1.8 mA | |
| Parameters related to functional safety | ||
| MTTFd | 8162 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | Solder joint | |
| Housing material | PA | |
| Protection等级 | IP67 | |
| Measurements | ||
| Length | 6.5 mm | |
| Diameter | 10 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBN5-11K8-N-V8
