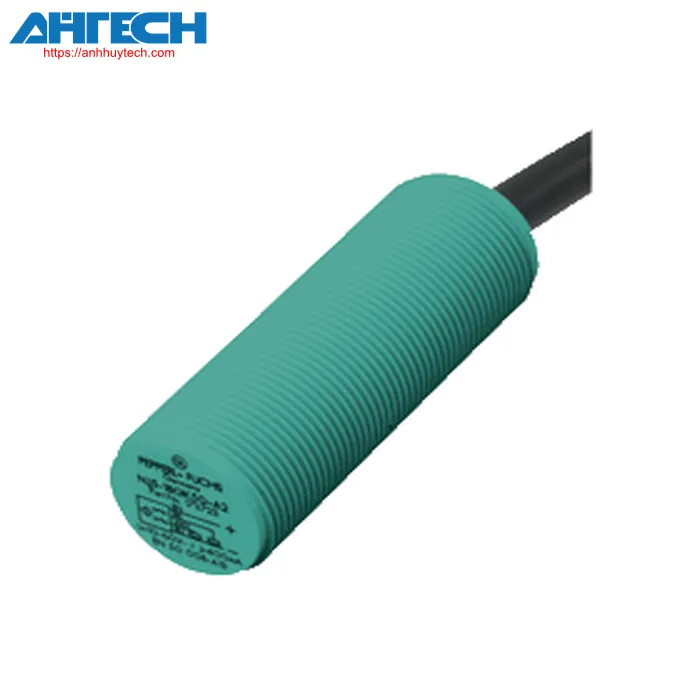

Inductive Sensor Pepperl+Fuchs NBN8-18GK50-E0

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		NPN
Specified functioning distance		8 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 6.48 mm
diminution factor r_Al		0.5
diminution factor r_Cu		0.4
diminution factor r₃₀₄		0.7
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V
commutation frequency		0 ... 500 Hz
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 200 mA
Non-conducting current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load input current		= 15 mA
State indication for switching		LED, yellow
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		cable PVC , 2 m
cross section of the core		0.34 mm²
Housing material		PBT
detection surface		PBT
Protection等级		IP68 / IP69K
Measurements
	Length	50 mm
	Diameter	18 mm
Note		utilize exclusively provided nuts
