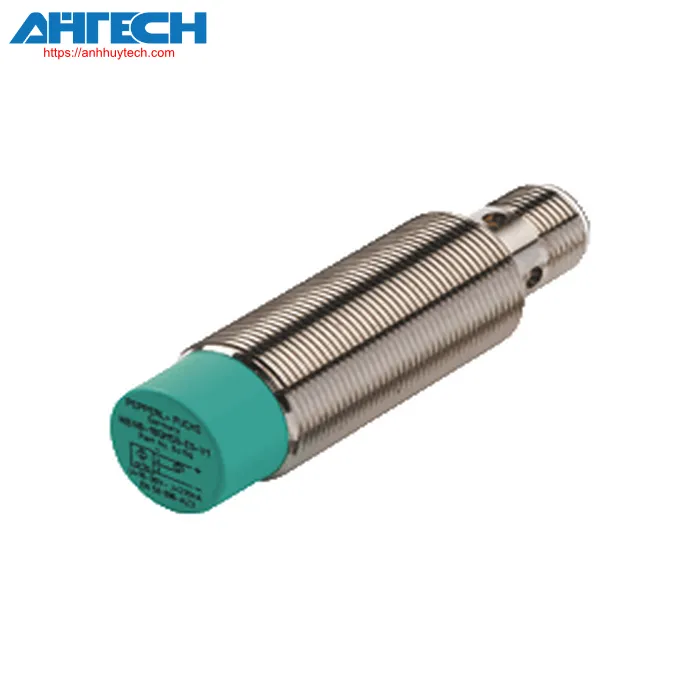

Inductive Sensor Pepperl+Fuchs NBN8-18GM50-E2-V1-Y46954

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
Specified functioning distance		8 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 6.48 mm
diminution factor r_Al		0.5
diminution factor r_Cu		0.4
diminution factor r₃₀₄		0.7
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V
commutation frequency		0 ... 500 Hz
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 200 mA
Non-conducting current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load input current		= 18 mA
State indication for switching		Yellow multihole LED
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		4-pin, M12 x 1 connector
Housing material		brass with a nickel coating
detection surface		PBT
Protection等级		IP67
Measurements
	Length	50 mm
	Diameter	18 mm
