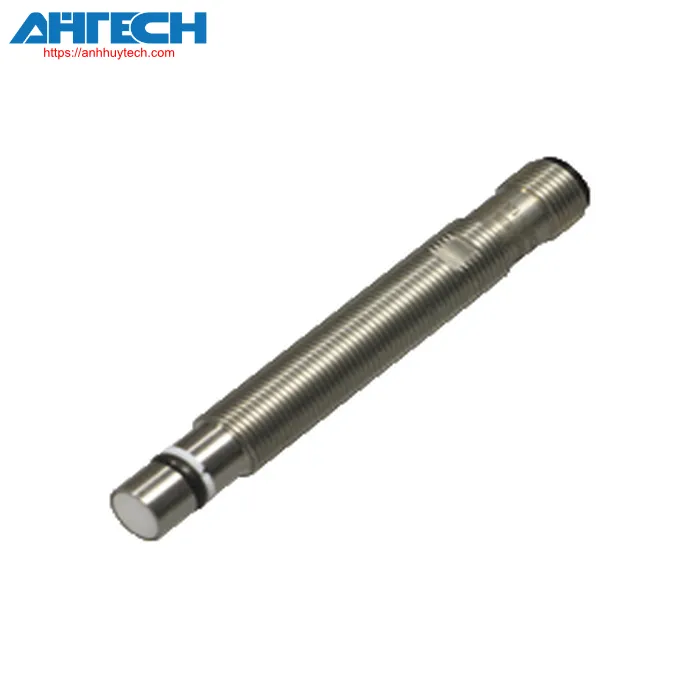

Inductive Sensor Pepperl+Fuchs NCB1,5-12GM70-E2-D-V1

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		PNP
Specified functioning distance		1.5 mm
mounting		flush
Output configuration		DC
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V DC
commutation frequency		0 ... 600 Hz
Deadband		3 ... 15 % typ. 8 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2 V
Operational current		0 ... 200 mA
No-load input current		= 10 mA
Boundary data
functional pressure		500 bar (7252 psi)
maximum pressure		1000 bar (14504 psi)
Parameters related to functional safety
MTTF_d		728 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CSA certification		cCSAus Listed, Intended for General Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical characteristics
Linkage method		plug connector
Housing material		Stainless steel 1.4305 / AISI 303
detection surface		Ceramic
Protection等级		IP68
Connector device
	Threading process	M12 x 1
	Pin count	4
Mass		42 g
Measurements
	Length	93 mm
	Diameter	12 mm
