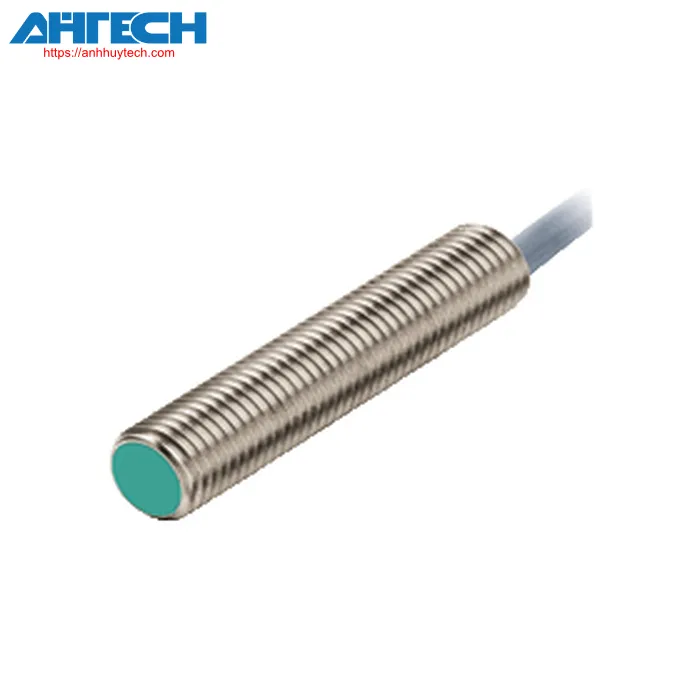

Inductive Sensor Pepperl+Fuchs NCB1,5-8GM40-Z0-10M-Y314871
Pepperl+Fuchs Categories
Inductive Sensor NCB1,5-8GM40-Z0-10M-Y314871
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCB1,5-8GM40-Z0-10M-Y314871
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | Two-wire | |
| Specified functioning distance | 1.5 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 1.21 mm | |
| Actual sensing distance | 1.35 ... 1.65 mm typ. | |
| diminution factor rAl | 0.22 | |
| diminution factor rCu | 0.16 | |
| diminution factor r304 | 0.64 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 60 V | |
| commutation frequency | 0 ... 1200 Hz | |
| Deadband | 1 ... 10 % typ. 5 % | |
| Polarity reversal protection | reverse polarity resistant | |
| Overcurrent protection | pulsing | |
| voltage loss | = 5 V | |
| Operational current | 2 ... 100 mA | |
| Minimal functioning current | 2 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. | |
| State indication for switching | LED, yellow | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | LCP | |
| Protection等级 | IP67 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 2.8 mm ± 0.1 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Core count | 2 | |
| cross section of the core | 0.14 mm2 | |
| Length | 10 m | |
| Measurements | ||
| Length | 40 mm | |
| Diameter | 8 mm | |
| Overview information | ||
| Contents of shipment | Enclosed wire end ferrule | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NCB1,5-8GM40-Z0-10M-Y314871
