Inductive Sensor Pepperl+Fuchs NCB2-12GM40-E2-3G-3D
Pepperl+Fuchs Categories

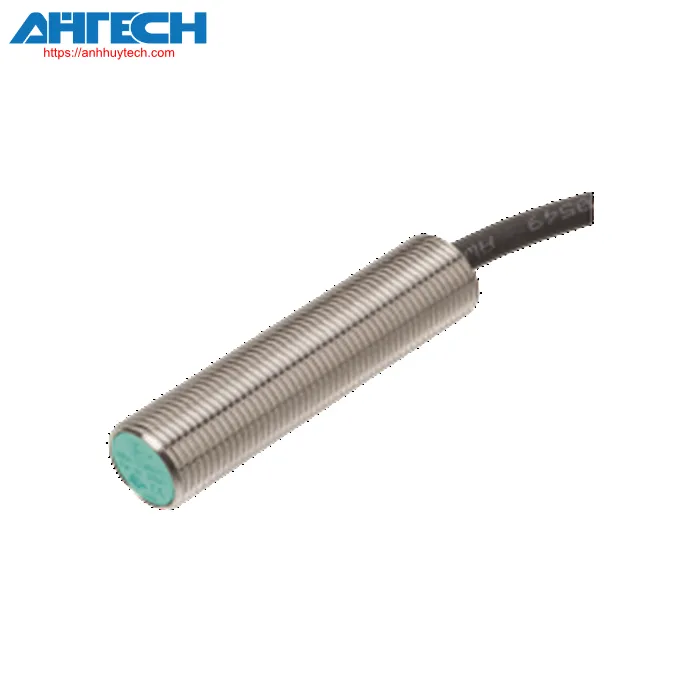

Inductive Sensor NCB2-12GM40-E2-3G-3D
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCB2-12GM40-E2-3G-3D
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 2 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 1.62 mm | |
| Actual sensing distance | 1.8 ... 2.2 mm typ. 2 mm | |
| diminution factor rAl | 0.3 | |
| diminution factor rCu | 0.17 | |
| diminution factor r304 | 0.67 | |
| diminution factor rBrass | 0.35 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 0 ... 2500 Hz | |
| Deadband | 3 ... 15 % typ. 6 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| voltage reduction at IL | ||
| Voltage reduction IL = 200 mA, actuating element activated | 1 ... 2 V typ. 1.5 V | |
| Operational current | = 200 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 0.01 mA | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | = 100 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1507 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Gc (ec) | IECEx TUR 21.0017X | |
| Equipment protection rating Dc (tc) | IECEx TUR 21.0018X | |
| ATEX certification | ||
| Equipment protection rating Gc (ec) | TÜV 20 ATEX 8523 X | |
| Equipment protection rating Dc (tc) | TÜV 20 ATEX 8524 X | |
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PBT | |
| Protection等级 | IP66 / IP67 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 4.6 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PVC | |
| Color | grey | |
| Core count | 3 | |
| cross section of the core | 0.34 mm2 | |
| Length | 2 m | |
| Mass | 88 g | |
| Measurements | ||
| Length | 40 mm | |
| Diameter | 12 mm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NCB2-12GM40-E2-3G-3D
