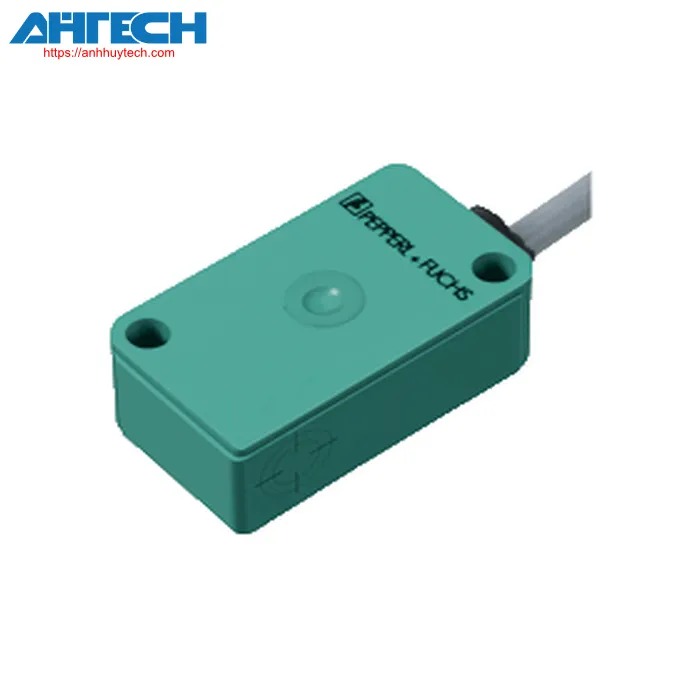

Inductive Sensor Pepperl+Fuchs NCB2-V3-N0-Y244943
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCB2-V3-N0-Y244943
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 2 mm | |
| mounting | flush | |
| Guaranteed functioning distance | 0 ... 1.62 mm | |
| diminution factor rAl | 0.3 | |
| diminution factor rCu | 0.2 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V (Ri approximately 1 kΩ | |
| commutation frequency | 0 ... 2000 Hz | |
| Deadband | typ. 3 % | |
| Current draw | ||
| Measurement plate not found | = 3 mA | |
| Measuring plate identified | = 1 mA | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| MTTFd | 2180 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic interference compliance | NE 21:2007 | |
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Ga | IECEx PTB 11.0021X | |
| Equipment protection rating Gb | IECEx PTB 11.0021X | |
| Equipment protection rating Da | IECEx PTB 11.0021X | |
| Equipment protection rating Mb | IECEx PTB 11.0021X | |
| ATEX certification | ||
| Equipment protection rating Ga | PTB 00 ATEX 2032 X | |
| Equipment protection rating Gb | PTB 00 ATEX 2032 X | |
| Equipment protection rating Da | PTB 00 ATEX 2032 X | |
| UL certification | ||
| Standard location | E87056 | |
| explosive atmosphere | E501628 | |
| Control schematic | 116-0451 | |
| CML certification | upon request | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable PVC , 130 mm Insulated wire end ferrule featuring an 8 mm pin length |
|
| Housing material | PBT | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Cable | ||
| Cable thickness | 2.6 mm ± 0.2 mm | |
| Curvature radius | > 10 times cable diameter | |
| Material | PVC | |
| cross section of the core | 0.14 mm2 | |
| Length | 130 mm | |
| Fastening torque for securing screws | = 0.4 Nm | |
| Measurements | ||
| Height | 10.2 mm | |
| Width | 27.8 mm | |
| Length | 16 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NCB2-V3-N0-Y244943
