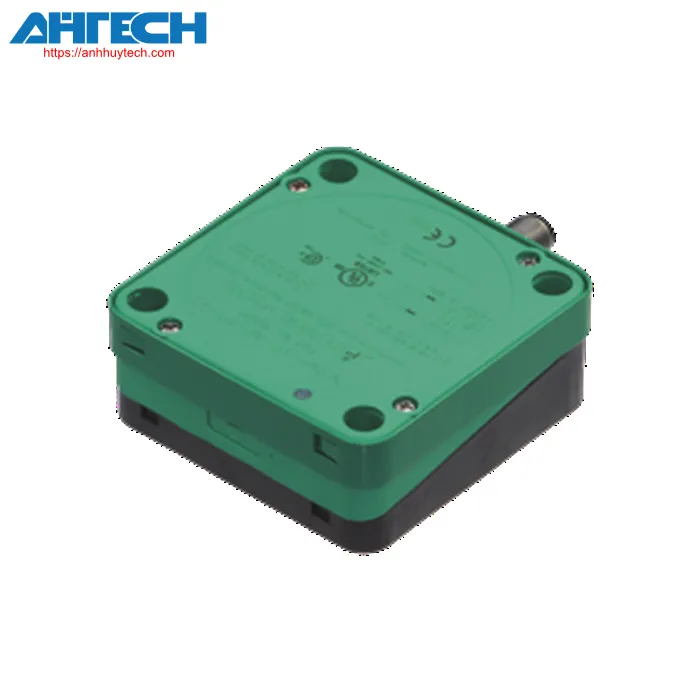

Inductive Sensor Pepperl+Fuchs NCB40-FP-N0-P1-V1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCB40-FP-N0-P1-V1
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 40 mm | |
| mounting | flush | |
| Guaranteed functioning distance | 0 ... 32 mm | |
| Actual sensing distance | 36 ... 44 mm typ. 40 mm | |
| diminution factor rAl | 0.35 | |
| diminution factor rCu | 0.35 | |
| diminution factor r304 | 0.8 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V (Ri approximately 1 kΩ | |
| commutation frequency | 0 ... 80 Hz | |
| Deadband | 0 ... 5 typ. 3 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | yes | |
| Current draw | ||
| Measurement plate not found | = 3 mA | |
| Measuring plate identified | = 1 mA | |
| Delay time prior to availability | = 20 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 2368 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic interference compliance | NE 21:2007 | |
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Ga | IECEx PTB 11.0021X | |
| Equipment protection rating Gb | IECEx PTB 11.0021X | |
| Equipment protection rating Da | IECEx PTB 11.0021X | |
| Equipment protection rating Mb | IECEx PTB 11.0021X | |
| ATEX certification | ||
| Equipment protection rating Ga | PTB 00 ATEX 2032 X | |
| Equipment protection rating Gb | PTB 00 ATEX 2032 X | |
| Equipment protection rating Da | PTB 00 ATEX 2032 X | |
| UL certification | cULus Certified, Standard Use | |
| Standard location | E87056 | |
| explosive atmosphere | E501628 | |
| Control schematic | 116-0451 | |
| CCC certification | ||
| explosive atmosphere | 2020322315002304 | |
| CML certification | upon request | |
| ANZEx | 19.3001X | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) | |
| Ambient storage temperature | -40 ... 100 °C (-40 ... 212 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | PBT | |
| detection surface | PBT | |
| enclosure base | PBT | |
| Protection等级 | IP67 | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Pin count | 4 | |
| Measurements | ||
| Height | 40 mm | |
| Width | 83 mm | |
| Length | 83 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NCB40-FP-N0-P1-V1
Download PDF
