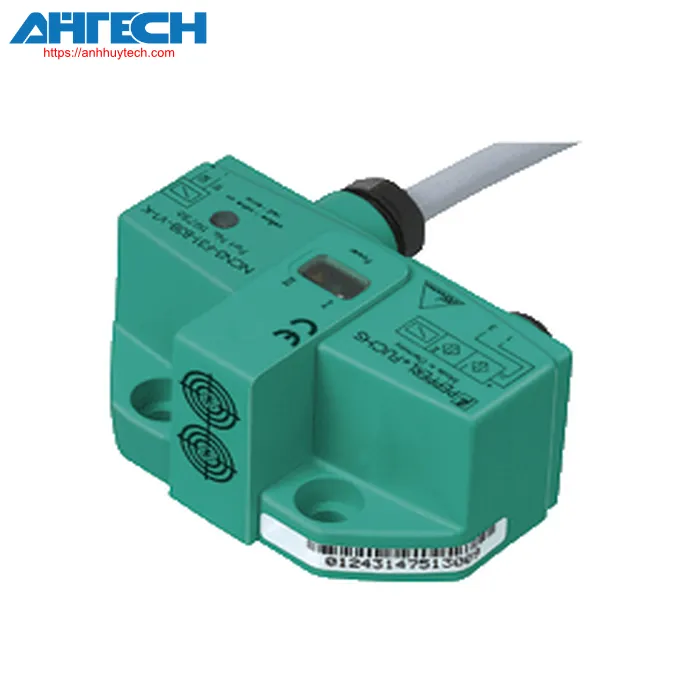

Inductive Sensor Pepperl+Fuchs NCN3-F31-B3B-V1-K

Pepperl+Fuchs Categories

Inductive Sensor Pepperl+Fuchs ncn3-f31-b3b-v1-k

Inductive Sensor NCN3-F31-B3B-V1-K

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  NCN3-F31-B3B-V1-K

Classifications

Item Specification
Valve positioner and valve control unit
Overall specifications
transition functionProgrammable normally open/closed (NO/NC)
Output configurationAS-Connection point
Specified functioning distance3 mm
mountingsurface mountable
Guaranteed functioning distance0 ... 2.43 mm
diminution factor rAl 0.5
diminution factor rCu 0.45
diminution factor r304 1
diminution factor rSt37 1.2
Node typeA/B node
AS-Connection point standardsV3.0
Mandatory gateway specification= V2.1
Rated specifications
Operational voltage26.5 ... 31.9 V through AS-i bus system
commutation frequency0 ... 100 Hz
No-load input current= 35 mA
Parameters related to functional safety
MTTFd842 a
task duration (TM)20 a
Diagnostic Range (DC)0 %
Indicators/operation controls
LED PWRAS-Connection point supply voltage; LED green
LED INTransition state (input); yellow LED
LED OUTbinary LED amber/red
yellow: functioning condition
red: wire breakage/short-circuit
Electrical parameters
Nominal functioning voltage26.5 ... 31.6 V supplied by AS-Connection point
Nominal functioning current100 mA
Adherence to standards and directives
Compliance with standards
Electromagnetic interference complianceEN 50295:1999-10
StandardsEN IEC 60947-5-2
Certifications and approvals
UL certificationcULus Certified, Standard Use
CSA certificationcCSAus Listed, Intended for General Use
CCC certificationCCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Connection point (system side)4-pin, M12 x 1 connector
Linkage (actuator side)0.5 m, PVC cord
Core cross-section (valve side)0.75 mm2
Connector device enclosuremetal
Housing materialPBT
Protection等级IP67
Cable
Cable thickness6 mm ± 0.2 mm
Curvature radius> 10 x cable diameter
Fastening torque for securing screws4 Nm ... 5 Nm
Measurements
Height33.5 mm
Width65 mm
Length36 mm
Notevalve voltage limited to 26,4 V max.; valve power 2,5 W max.

Download Specification for NCN3-F31-B3B-V1-K

Download PDF
