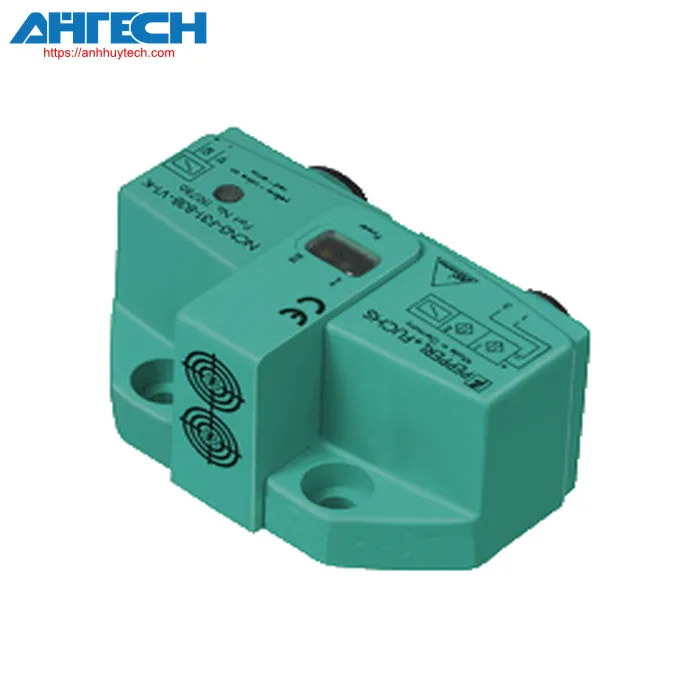

Inductive Sensor Pepperl+Fuchs NCN3-F31-B3B-V1-V1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCN3-F31-B3B-V1-V1
| Item Specification | ||
|---|---|---|
| Valve positioner and valve control unit | ||
| Overall specifications | ||
|---|---|---|
| transition function | Programmable normally open/closed (NO/NC) | |
| Output configuration | AS-Connection point | |
| Specified functioning distance | 3 mm | |
| mounting | surface mountable | |
| Guaranteed functioning distance | 0 ... 2.43 mm | |
| diminution factor rAl | 0.5 | |
| diminution factor rCu | 0.45 | |
| diminution factor r304 | 1 | |
| diminution factor rSt37 | 1.2 | |
| Node type | A/B node | |
| AS-Connection point standards | V3.0 | |
| Mandatory gateway specification | = V2.1 | |
| Rated specifications | ||
| Operational voltage | 26.5 ... 31.9 V through AS-i bus system | |
| commutation frequency | 0 ... 100 Hz | |
| No-load input current | = 35 mA | |
| Parameters related to functional safety | ||
| MTTFd | 842 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| LED PWR | AS-Connection point supply voltage; LED green | |
| LED IN | Transition state (input); yellow LED | |
| LED OUT | binary LED amber/red yellow: functioning condition red: wire breakage/short-circuit |
|
| Electrical parameters | ||
| Nominal functioning voltage | 26.5 ... 31.6 V supplied by AS-Connection point | |
| Nominal functioning current | 100 mA | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Electromagnetic interference compliance | EN 50295:1999-10 |
|
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Connection point (system side) | 4-pin, M12 x 1 connector | |
| Linkage (actuator side) | socket connector, M12 x 1, 4-pole | |
| Connector device enclosure | metal | |
| Housing material | PBT | |
| Protection等级 | IP67 | |
| Fastening torque for securing screws | 4 Nm ... 5 Nm | |
| Measurements | ||
| Height | 33.5 mm | |
| Width | 65 mm | |
| Length | 36 mm | |
| Note | valve voltage limited to 26,4 V max.; valve power 2,5 W max. | |
Download Specification for NCN3-F31-B3B-V1-V1
Download PDF
