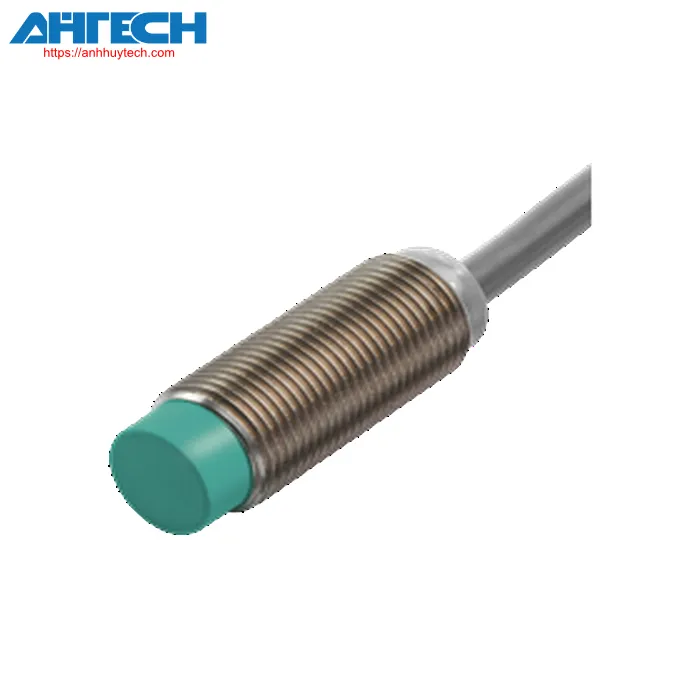

Inductive Sensor NCN4-12GM35-N0-0,5M-V1-Y
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCN4-12GM35-N0-0,5M-V1-Y
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 4 mm | |
| mounting | non-flush | |
| Guaranteed functioning distance | 0 ... 3.24 mm | |
| Actual sensing distance | 3.6 ... 4.4 mm typ. | |
| diminution factor rAl | 0.37 | |
| diminution factor rCu | 0.36 | |
| diminution factor r304 | 0.74 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V (Ri approximately 1 kΩ | |
| commutation frequency | 0 ... 800 Hz | |
| Deadband | 1 ... 10 typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | yes | |
| Current draw | ||
| Measurement plate not found | min. 3 mA | |
| Measuring plate identified | = 1 mA | |
| State indication for switching | omnidirectional LED, yellow | |
| Parameters related to functional safety | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| MTTFd | 2520 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Electromagnetic interference compliance | NE 21:2007 | |
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) | |
| Ambient storage temperature | -40 ... 100 °C (-40 ... 212 °F) | |
| Mechanical characteristics | ||
| Linkage method | permanent cable with plug | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PBT | |
| Protection等级 | IP66 / IP67 | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Fastening torque | 0.6 Nm | |
| Pin count | 2 | |
| Cable | ||
| Cable thickness | 4.8 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Core count | 2 | |
| cross section of the core | 0.34 mm2 | |
| Length | 0.5 m | |
| Mass | 50 g | |
| Measurements | ||
| Length | 35 mm | |
| Diameter | 12 mm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NCN4-12GM35-N0-0,5M-V1-Y
