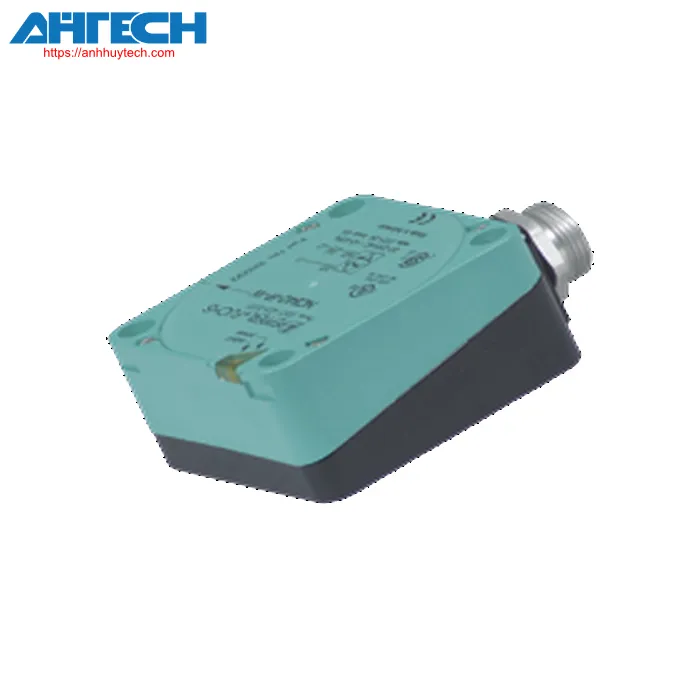

Inductive Sensor Pepperl+Fuchs NCN50-FP-A2-P4-BHMSP5

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		Normally open/closed (NO/NC)
Output configuration		PNP
Specified functioning distance		50 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 40.5 mm
diminution factor r_Al		0.4
diminution factor r_Cu		0.3
diminution factor r₃₀₄		0.85
Output configuration		4-wire
Rated specifications
Operational voltage		10 ... 60 V
commutation frequency		0 ... 80 Hz
Deadband		typ. 3 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 200 mA
Non-conducting current		0 ... 0.5 mA
No-load input current		= 20 mA
Delay time prior to availability		= 300 ms
Voltage functioning indicator		LED, green
State indication for switching		LED, yellow
Parameters related to functional safety
MTTF_d		680 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		stainless steel 7/8 inch-16 UN, 5-pin connector
Housing material		PBT/metal substrate
detection surface		PBT
enclosure base		metal
Protection等级		IP67
Fastening torque, enclosure screws		1 Nm
Measurements
	Height	40 mm
	Width	80 mm
	Length	80 mm
Note		epoxy-encased terminal enclosure
