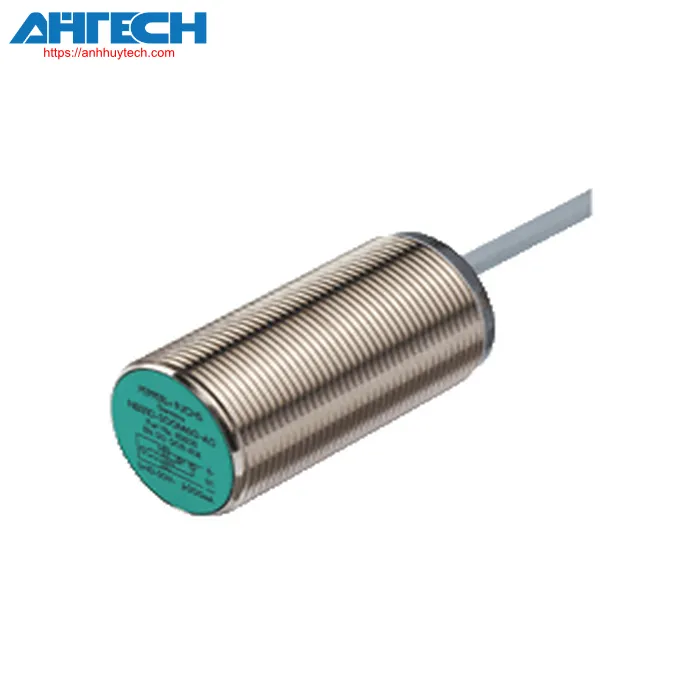

Inductive Sensor Pepperl+Fuchs NEB22-30GM60-E2
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NEB22-30GM60-E2
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 22 mm | |
| mounting | nearly flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 17.8 mm | |
| diminution factor rAl | 0.25 | |
| diminution factor rCu | 0.22 | |
| diminution factor r304 | 0.65 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| mounting requirements | ||
| A | 6 mm | |
| B | 37 mm | |
| C | 66 mm | |
| F | 80 mm | |
| Operational voltage | 10 ... 30 V | |
| commutation frequency | 0 ... 150 Hz | |
| Deadband | = 10 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 5 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | = 0.1 mA | |
| No-load input current | = 10 mA | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 213 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable PVC , 2 m | |
| cross section of the core | 0.34 mm2 | |
| Housing material | chromium-coated brass | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Measurements | ||
| Length | 60 mm | |
| Diameter | 30 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
