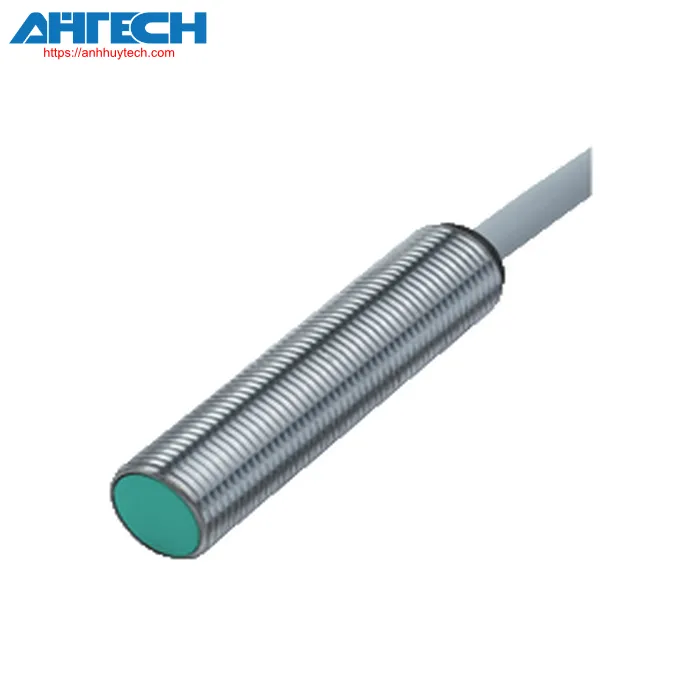

Inductive Sensor Pepperl+Fuchs NEB6-12GM50-E3-Y70158977
Pepperl+Fuchs Categories
Inductive Sensor NEB6-12GM50-E3-Y70158977
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NEB6-12GM50-E3-Y70158977
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | PNP | |
| Specified functioning distance | 6 mm | |
| mounting | nearly flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 4.8 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm |
|
| diminution factor rAl | 0.28 | |
| diminution factor rCu | 0.2 | |
| diminution factor r304 | 0.7 | |
| diminution factor rBrass | 0.35 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| mounting requirements | ||
| A | in steel 1.0037 (St37): 2.4 mm in different metal: 1.2 mm |
|
| B | 12 mm | |
| C | 18 mm | |
| F | 24 mm | |
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 0 ... 800 Hz | |
| Deadband | 0.06 ... 1.2 mm | |
| Polarity reversal protection | yes | |
| Overcurrent protection | pulsing | |
| Overload capacity | yes | |
| Cable breakage protection | yes | |
| Overvoltage protection | yes | |
| Ripple | 10 % | |
| voltage loss | = 2 V | |
| Repeatability accuracy | 0.3 mm | |
| Operational current | 0 ... 200 mA , above 70°C max. 150 mA | |
| Non-conducting current | = 10 µA | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | = 50 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1740 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus certified, Class 2 power supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | permanent cable with plug | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Connector device | AMP connector | |
| Pin count | 3 | |
| Linkage unit | AMP connector housing 174359-2 AMP-Crimp terminal 171631-1 AMP seal 2822352-2 AMP Lock connector 1-174360-1 |
|
| Cable | ||
| Cable thickness | 4.3 mm ± 0.1 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Core count | 3 | |
| cross section of the core | 0.34 mm2 | |
| Length | 200 mm ± 10 mm additional length specifications: L1 = 20 mm |
|
| Measurements | ||
| Length | 50 mm | |
| Diameter | 12 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NEB6-12GM50-E3-Y70158977
