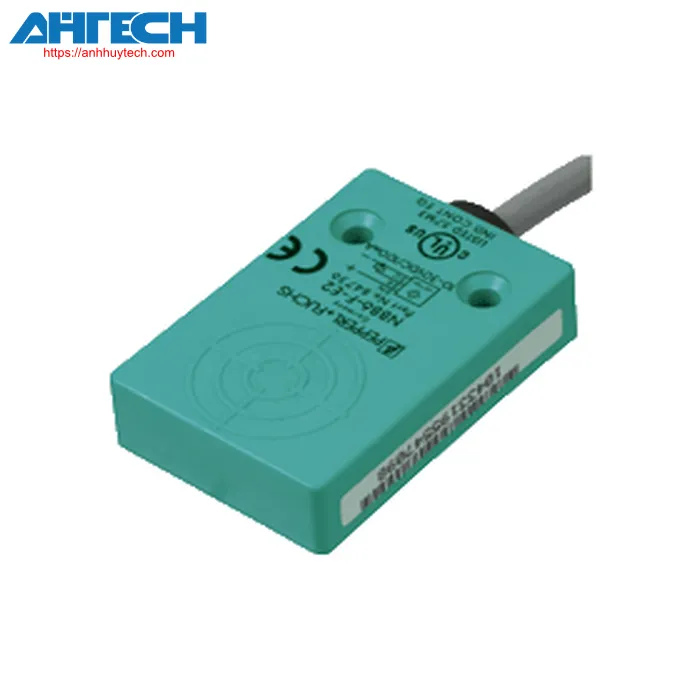

Inductive Sensor NJ10-F-E2-10M-Y89586
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NJ10-F-E2-10M-Y89586
| Overall specifications | ||
|---|---|---|
| Specified functioning distance | 10 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 8.1 mm | |
| Actual sensing distance | 5.4 ... 6.6 mm typ. | |
| diminution factor rAl | 0.22 | |
| diminution factor rCu | 0.2 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 60 V DC | |
| commutation frequency | 0 ... 250 Hz | |
| Deadband | 0 ... 0.3 % typ. 0.1 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | = 0.5 mA | |
| No-load input current | = 20 mA | |
| Delay time prior to availability | = 15 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 990 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | Approved by China Compulsory Certification (CCC) | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | PBT | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 4.8 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PUR | |
| Color | black | |
| Core count | 3 | |
| cross section of the core | 0.34 mm2 | |
| Length | 10 m | |
| Mass | 340 g | |
| Measurements | ||
| Height | 30 mm | |
| Width | 45 mm | |
| Length | 12 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
