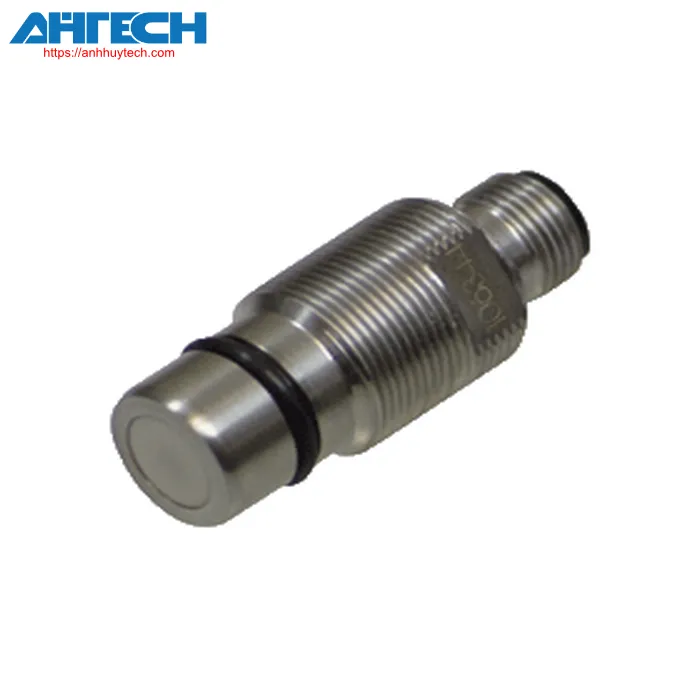

Inductive Sensor Pepperl+Fuchs NJ1,5-18GM-N-D-V1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NJ1,5-18GM-N-D-V1
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 1.5 mm | |
| mounting | flush | |
| Guaranteed functioning distance | 0 ... 1.22 mm | |
| diminution factor rAl | 0 | |
| diminution factor rCu | 0 | |
| diminution factor r304 | 0.55 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V (Ri approximately 1 kΩ | |
| commutation frequency | 0 ... 400 Hz | |
| Deadband | typ. % | |
| Current draw | ||
| Measurement plate not found | min. 3 mA | |
| Measuring plate identified | = 1 mA | |
| Boundary data | ||
| functional pressure | 350 bar (5076.4 psi) | |
| Parameters related to functional safety | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| MTTFd | 10887 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Gb | IECEx PTB 11.0037X | |
| Equipment protection rating Da | IECEx PTB 11.0037X | |
| Equipment protection rating Mb | IECEx PTB 11.0037X | |
| ATEX certification | ||
| Equipment protection rating Gb | PTB 00 ATEX 2048 X | |
| Equipment protection rating Da | PTB 00 ATEX 2048 X | |
| FM approval | ||
| Control schematic | 116-0165 | |
| UL certification | cULus Certified, Standard Use | |
| CCC certification | ||
| explosive atmosphere | 2020322315002255 | |
| CML certification | upon request | |
| ANZEx | 18.3018X | |
| KCC certification | ||
| explosive atmosphere | 19-AV4BO-0227 | |
| Marine certification | DNVGL TAA0000106 | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | Ceramic | |
| Protection等级 | IP66 / IP67 | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Pin count | 4 | |
| Mass | 41.81 g | |
| Measurements | ||
| Length | 35 mm | |
| Diameter | 18 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
