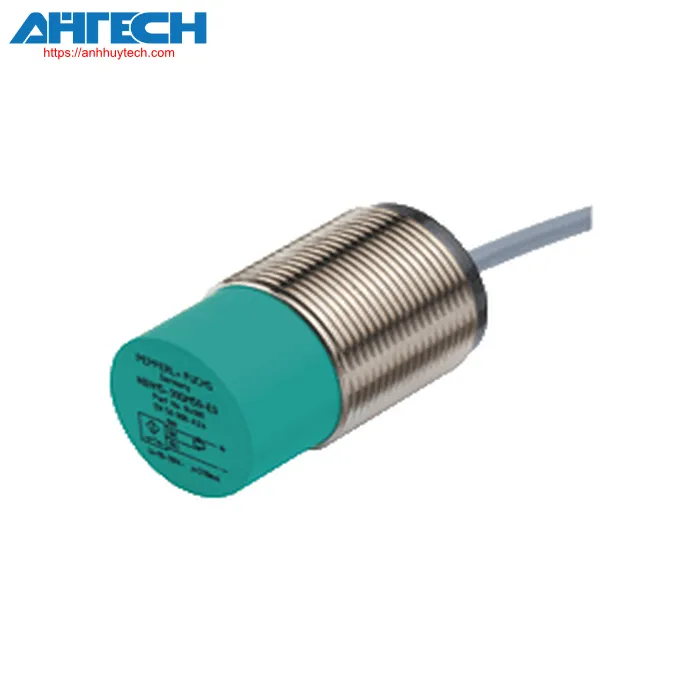

Inductive Sensor Pepperl+Fuchs NJ15-30GM50-A2-5M

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Inductive proximity sensor

Overall specifications
transition function		supplementary
Output configuration		PNP
Specified functioning distance		15 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 12.15 mm
Actual sensing distance		13.5 ... 16.5 mm typ. 15 mm
diminution factor r_Al		0.45
diminution factor r_Cu		0.4
diminution factor r₃₀₄		0.8
Output configuration		4-wire
Rated specifications
Operational voltage		10 ... 60 V
commutation frequency		0 ... 300 Hz
Deadband		typ. 5 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 400 mA
No-load input current		= 15 mA
State indication for switching		LED, yellow
Parameters related to functional safety
MTTF_d		1190 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		Approved by China Compulsory Certification (CCC)
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		cable PVC , 5 m
cross section of the core		0.75 mm²
Housing material		Stainless steel 1.4305 / AISI 303
detection surface		PBT
Protection等级		IP67
Measurements
	Length	50 mm
	Diameter	30 mm
