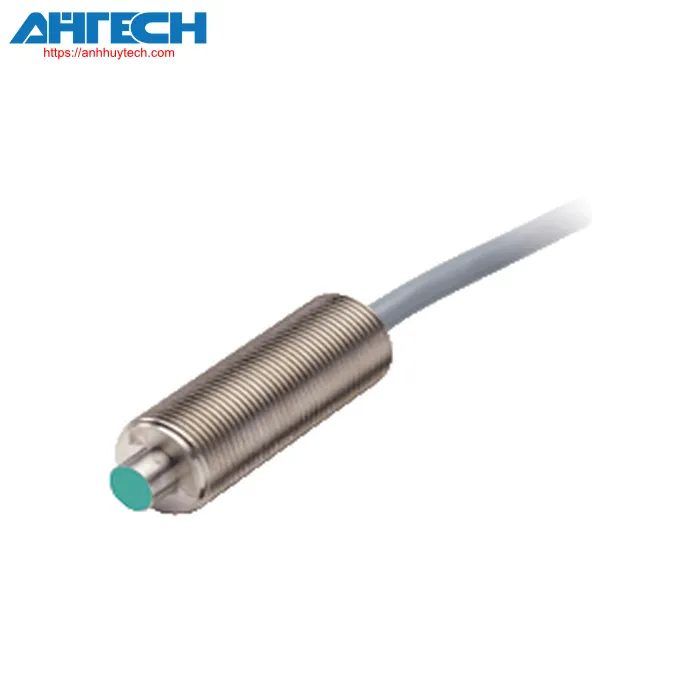

Inductive Sensor Pepperl+Fuchs NJ1,5-6,5-E2-G-5M
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NJ1,5-6,5-E2-G-5M
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 1.5 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 1.215 mm | |
| Actual sensing distance | 1.35 ... 1.65 mm typ. 1.5 mm | |
| diminution factor rAl | 0.24 | |
| diminution factor rCu | 0.21 | |
| diminution factor r304 | 0.67 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 60 V | |
| commutation frequency | 0 ... 500 Hz | |
| Deadband | 1 ... 15 % typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| voltage reduction at IL | ||
| Voltage reduction IL = 10 mA, actuating element activated | 1 ... 2.2 V typ. 1.6 V | |
| Voltage reduction IL = 20 mA, actuating element activated | 0.9 ... 2.4 V typ. 1.7 V | |
| Voltage reduction IL = 50 mA, actuating element activated | 1.2 ... 2.4 V typ. 1.8 V | |
| Voltage reduction IL = 100 mA, actuating element activated | 1.4 ... 2.6 V typ. 2 V | |
| Operational current | 0 ... 100 mA | |
| Minimal functioning current | 0 mA | |
| Non-conducting current | 0 ... 0.1 mA typ. 0.01 mA | |
| Non-conducting current IU =40 °C, deactivating the switching element | = 100 µA | |
| No-load input current | = 6 mA | |
| Delay time prior to availability | = 20 ms | |
| State indication for switching | - | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | Approved by China Compulsory Certification (CCC) | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 4.6 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PVC | |
| Color | grey | |
| Core count | 3 | |
| cross section of the core | 0.34 mm2 | |
| Length | 5 m | |
| Mass | 210 g | |
| Measurements | ||
| Length | 45 mm | |
| Diameter | 14 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
