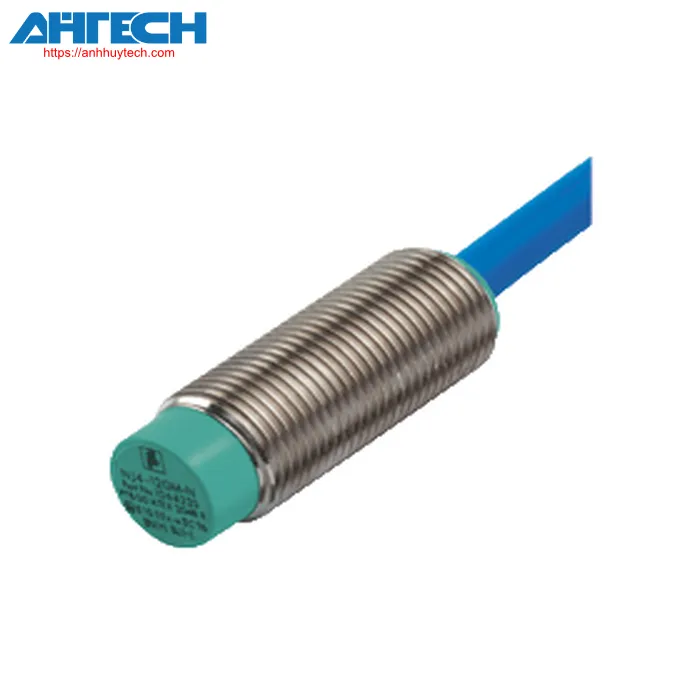

Inductive Sensor Pepperl+Fuchs NJ4-12GM-Z11-2M-Y
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NJ4-12GM-Z11-2M-Y
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Specified functioning distance | 4 mm | |
| mounting | non-flush | |
| Guaranteed functioning distance | 0 ... 3.24 mm | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.85 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 12 V | |
| commutation frequency | 0 ... 1500 Hz | |
| Deadband | 3 % | |
| Current draw | ||
| Measurement plate not found | = 3 mA | |
| Measuring plate identified | = 1 mA | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | PVC cable, 2 m with wire end ferrule | |
| cross section of the core | 0.34 mm2 | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Measurements | ||
| Length | 30 mm | |
| Diameter | 12 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NJ4-12GM-Z11-2M-Y
