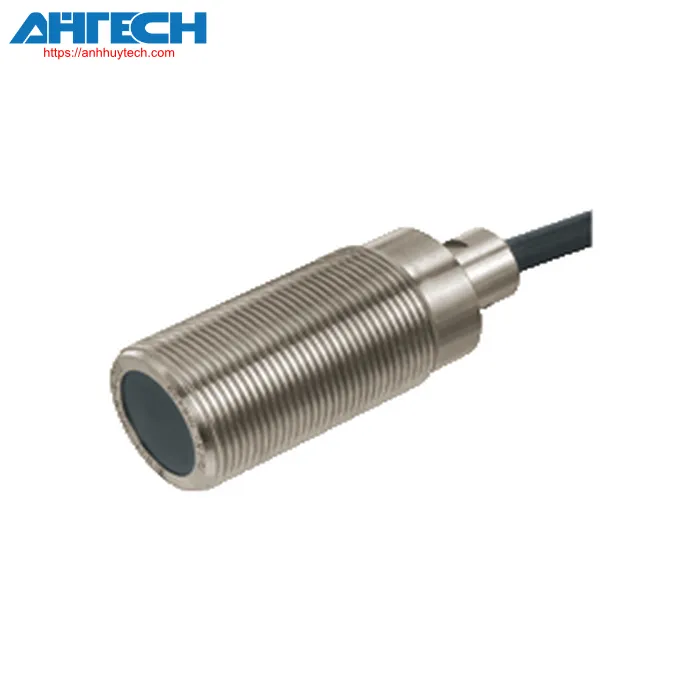

Inductive Sensor Pepperl+Fuchs NJ4-30GM-N-200
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NJ4-30GM-N-200
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 4 mm | |
| mounting | flush | |
| Guaranteed functioning distance | 0 ... 3.04 mm | |
| diminution factor rAl | 0.15 | |
| diminution factor rCu | 0.05 | |
| diminution factor r304 | 0.55 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V (Ri approximately 1 kΩ | |
| commutation frequency | 0 ... 1000 Hz | |
| Deadband | = 20 % at 200°C | |
| Compatible with 2:1 technology | yes, reverse polarity protection diode is unnecessary | |
| Current draw | ||
| Measurement plate not found | min. 3 mA | |
| Measuring plate identified | = 1 mA | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Ga | IECEx PTB 11.0037X | |
| Equipment protection rating Gb | IECEx PTB 11.0037X | |
| Equipment protection rating Da | IECEx PTB 11.0037X | |
| Equipment protection rating Mb | IECEx PTB 11.0037X | |
| ATEX certification | ||
| Equipment protection rating Ga | PTB 00 ATEX 2048 X | |
| Equipment protection rating Gb | PTB 00 ATEX 2048 X | |
| Equipment protection rating Da | PTB 00 ATEX 2048 X | |
| UL certification | ||
| Standard location | E87056 | |
| explosive atmosphere | E501628 | |
| Control schematic | 116-0452 | |
| CCC certification | ||
| explosive atmosphere | 2020322315002257 | |
| CML certification | upon request | |
| ANZEx | 18.3018X | |
| Environmental conditions | ||
| Ambient temperature | 0 ... 200 °C (32 ... 392 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PPS | |
| Protection等级 | IP65 | |
| Cable | ||
| Cable thickness | 4 mm ± 0.2 mm | |
| Curvature radius | > 7.5 x cable thickness | |
| Material | FEP | |
| cross section of the core | 0.34 mm2 | |
| Length | 5 m | |
| Measurements | ||
| Length | 75 mm | |
| Diameter | 30 mm | |
| Note | amplifier -25°C...70°C 2 m PTFE cable connecting the amplifier and oscillator |
|
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NJ4-30GM-N-200
