Inductive Sensor Pepperl+Fuchs NMB10-18GM55-E2-355MM-4DT06

Pepperl+Fuchs Categories

Inductive Sensor Pepperl+Fuchs nmb10-18gm55-e2-355mm-4dt06

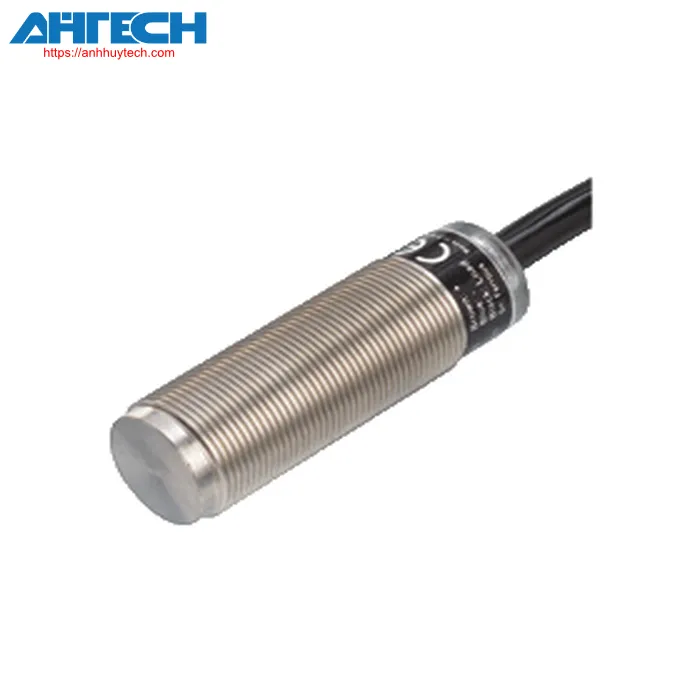

Inductive Sensor NMB10-18GM55-E2-355MM-4DT06

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  NMB10-18GM55-E2-355MM-4DT06

Classifications

Item Specification
Inductive proximity sensor
Overall specifications
transition functionnormally open (NO)
Output configurationPNP
Specified functioning distance10 mm
mountingflush (Specifications: refer to drawing below)
Output configurationDC
Guaranteed functioning distance0 ... 8.1 mm
Actuating componentFerrous and non-ferrous targets
diminution factor rAl 0.4
diminution factor rCu 0.25
diminution factor r304 0.85
diminution factor rSt37 1
Output configuration3-wire
Rated specifications
Operational voltage10 ... 30 V DC
commutation frequency0 ... 240 Hz
Deadband3 ... 15 typ. 10 %
Polarity reversal protectionreverse polarity safeguarded
Overcurrent protectionpulsing
voltage loss= 2 V
Operational current= 200 mA
Non-conducting current10 µA
No-load input current= 10 mA
Voltage functioning indicatorLED, green
State indication for switchingLED, yellow
Parameters related to functional safety
MTTFd847 a
task duration (TM)20 a
Diagnostic Range (DC)0 %
Adherence to standards and directives
Compliance with standards
StandardsEN IEC 60947-5-2
Environmental conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage methodpermanent cable with plug
cross section of the core0.5 mm2
Housing materialStainless steel 1.4305 / AISI 303
detection surfaceStainless steel 1.4305 / AISI 303
Protection等级IP67
Connector device
Linkage unitDeutsch connector DT06-4S-C015
Deutsch connector 1062-16-0622
Deutsch connector 114017
Deutsch block W4S
Cable
Cable thickness6.2 mm ± 0.2 mm
Curvature radius> 10 x cable diameter
MaterialPUR
Colorblack
Core count3
LengthL = 325 mm
Measurements
Length55 mm
Diameter18 mm
Mountingwith fasteners, M18
NoteDeutsch connector
Overview information
Contents of shipment2 self-locking nuts included in the delivery scope

Download Specification for NMB10-18GM55-E2-355MM-4DT06

Download PDF
