Inductive Sensor Pepperl+Fuchs NMB15-30GM65-E2-C4-V1
Pepperl+Fuchs Categories

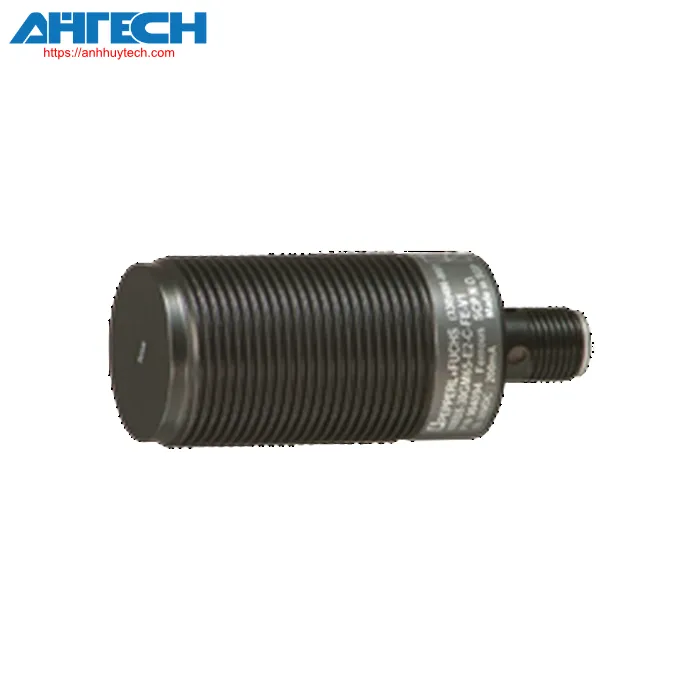

Inductive Sensor NMB15-30GM65-E2-C4-V1
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NMB15-30GM65-E2-C4-V1
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 15 mm | |
| mounting | flush (Specifications: refer to drawing below) | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 12.15 mm | |
| Actuating component | Ferrous and non-ferrous targets | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.2 | |
| diminution factor r304 | 0.85 | |
| diminution factor rSt37 | 1 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 1 Hz | |
| Deadband | 3 ... 15 typ. 10 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 2 V | |
| Operational current | = 200 mA | |
| Current draw | = 10 mA | |
| Non-conducting current | = 10 µA | |
| No-load input current | = 15 mA | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | Yellow multihole LED | |
| Magnetic field intensity, alternating current fields | 250 mT | |
| Magnetic field strength, direct current fields | 250 mT | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector M12 x 1, 4-contact | |
| Housing material | Xylan coated - Stainless steel 1.4305 / AISI 303 | |
| detection surface | Xylan coated - Stainless steel 1.4305 / AISI 303 | |
| Protection等级 | IP67 | |
| Measurements | ||
| Length | 65 mm | |
| Diameter | 30 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NMB15-30GM65-E2-C4-V1
