Inductive Sensor Pepperl+Fuchs NMB5-18GM85-US-FE-V93
Pepperl+Fuchs Categories

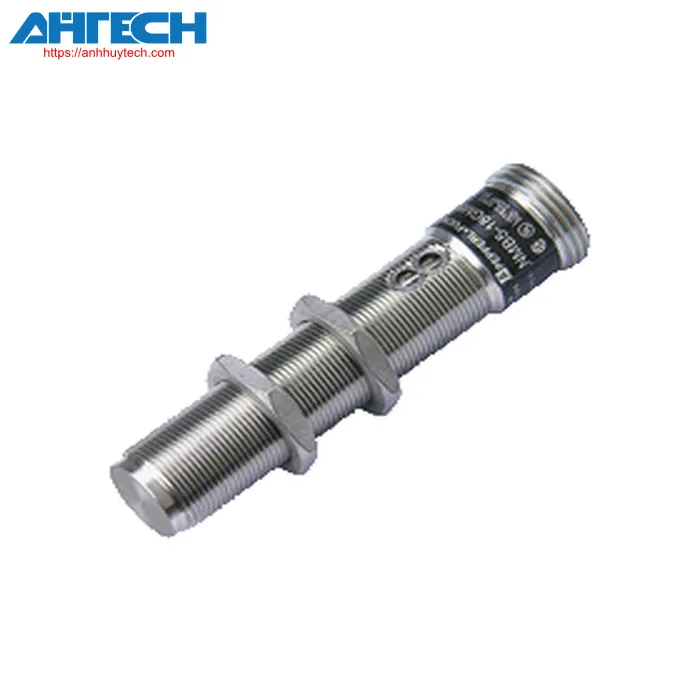

Inductive Sensor NMB5-18GM85-US-FE-V93
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NMB5-18GM85-US-FE-V93
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | Two-wire | |
| Specified functioning distance | 5 mm | |
| mounting | flush | |
| Output configuration | AC/DC | |
| Guaranteed functioning distance | 0 ... 4.05 mm | |
| Actuating component | Ferrous materials | |
| diminution factor rAl | 0 | |
| diminution factor rCu | 0 | |
| diminution factor r304 | 0.4 - 0.7 | |
| diminution factor rSt37 | 1 | |
| diminution factor rBrass | 0 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| commutation frequency | 15 Hz | |
| Deadband | 3 ... 15 typ. 5 % | |
| Polarity reversal protection | yes | |
| Overcurrent protection | yes | |
| voltage loss | = 7 V | |
| Nominal functioning current | 8 ... 200 mA AC/DC | |
| Non-conducting current | = 1.3 mA | |
| Fault indicator | LED, green/yellow (alternating flashing) - indication for short circuit/overload | |
| Indicators/operation controls | ||
| Operational status indicator | Dual light-emitting diode Green: power Yellow: output |
|
| Electrical parameters | ||
| Nominal functioning voltage | 20 ... 250 V AC/DC | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | Approved by China Compulsory Certification (CCC) | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | 7/8 inch-16 UN connector plug, 3-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | Stainless steel 1.4305 / AISI 303 | |
| Protection等级 | IP67 | |
| Measurements | ||
| Length | 90 mm | |
| Diameter | 18 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NMB5-18GM85-US-FE-V93
Download PDF
