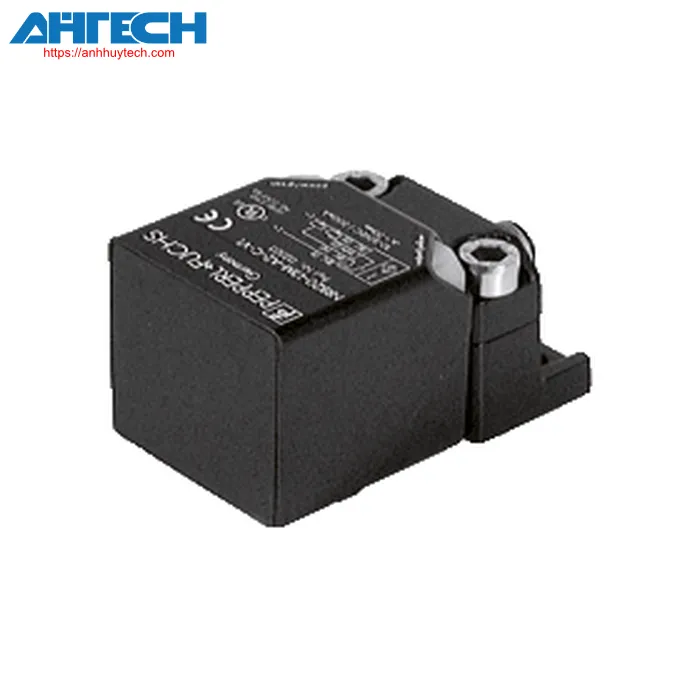

Inductive Sensor Pepperl+Fuchs NRB20-L3M-A2-C3-V1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NRB20-L3M-A2-C3-V1
| Overall specifications | ||
|---|---|---|
| transition function | supplementary | |
| Output configuration | PNP | |
| Specified functioning distance | 20 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 16.2 mm | |
| Actual sensing distance | 18 ... 22 mm typ. 20 mm | |
| diminution factor rAl | 1 | |
| diminution factor rCu | 1 | |
| diminution factor r304 | 1 | |
| diminution factor rSt37 | 1 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 0 ... 440 Hz | |
| Deadband | 3 ... 15 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 2.5 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 0.01 mA | |
| No-load input current | = 25 mA | |
| Delay time prior to availability | 15 ms | |
| Uniform magnetic field | 200 mT | |
| Oscillating magnetic field | 200 mT | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1123 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II | |
| Nominal insulation voltage | 60 V | |
| Rated surge voltage withstand capability | 800 V | |
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector M12 x 1, 4-contact | |
| Housing material | GD-ZnAl4Cu1, Coated coated metal mounting flange |
|
| detection surface | Duroplastic material | |
| Protection等级 | IP67 | |
| Mass | 180 g | |
| Measurements | ||
| Height | 40 mm | |
| Width | 40 mm | |
| Length | 67 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NRB20-L3M-A2-C3-V1
Download PDF
