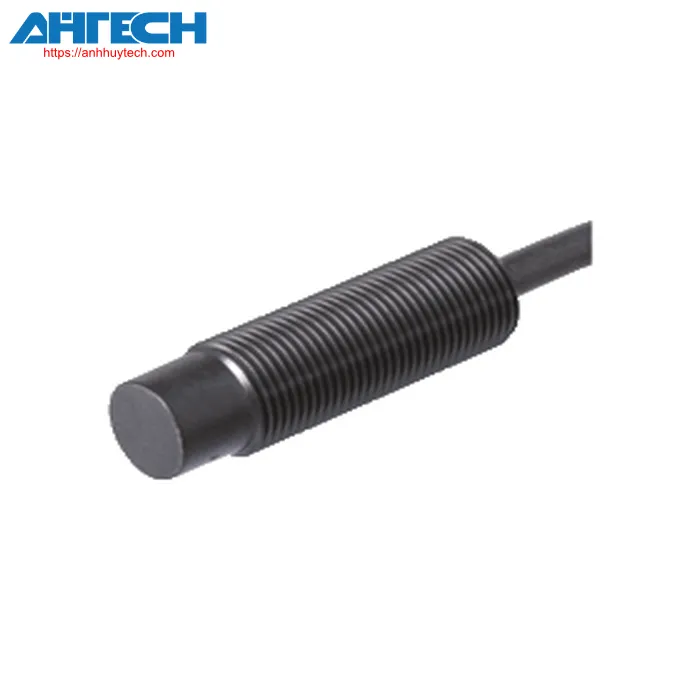

Inductive Sensor NRN10-12GM40-E2-IO-C
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NRN10-12GM40-E2-IO-C
| Overall specifications | ||
|---|---|---|
| transition function | Programmable normally open/closed (NO/NC) | |
| Output configuration | PNP | |
| Specified functioning distance | 10 mm (default configuration) | |
| Proximity functioning range | 8 mm (can be enabled by software) | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 8.1 mm | |
| diminution factor rAl | 1 | |
| diminution factor rCu | 1 | |
| diminution factor r304 | 1 | |
| diminution factor rSt37 | 1 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 0 ... 1300 Hz (switch point mode) 0 ... 80 Hz (window mode, switch point mode with stability alarm) |
|
| Deadband | typ. 3 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 0.5 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 60 µA at 25 °C | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | max. 150 ms | |
| Uniform magnetic field | 200 mT | |
| Oscillating magnetic field | 200 mT | |
| Condition indicator | Yellow indicator LED | |
| Parameters related to functional safety | ||
| MTTFd | 362 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Connection point | ||
| Type of interface | IO-Link ( via C/Q ) | |
| IO-Link revision | 1.1 | |
| Device ID | 0x201114 (2101524) | |
| data transfer rate | COM2 (38.4 kBit/s) | |
| Minimum cycle time | 2.3 ms | |
| process data range | procedural information entry (control system aspect): 2 Bit procedural information output (control system side): not applicable |
|
| SIO mode support | yes | |
| Compatible master port classification | A | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II | |
| Nominal insulation voltage | 60 V | |
| Rated surge voltage withstand capability | 800 V | |
| UL certification | cULus Certified, Standard Use Class 2 power supply |
|
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable PUR , 2 m | |
| cross section of the core | 0.34 mm2 | |
| Housing material | Brass with PTFE coating | |
| detection surface | PPS | |
| Protection等级 | IP67 | |
| Cable | ||
| Cable thickness | 4.3 mm ± 0.1 mm | |
| Curvature radius | > 10 x cable diameter | |
| Mass | 78 g | |
| Measurements | ||
| Length | 40 mm | |
| Diameter | 12 mm | |
| Default configurations | ||
| Factory configuration | functioning mode = switching point mode with stability alert switching function = normally open (NO) activation distance = 10 mm |
|
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
