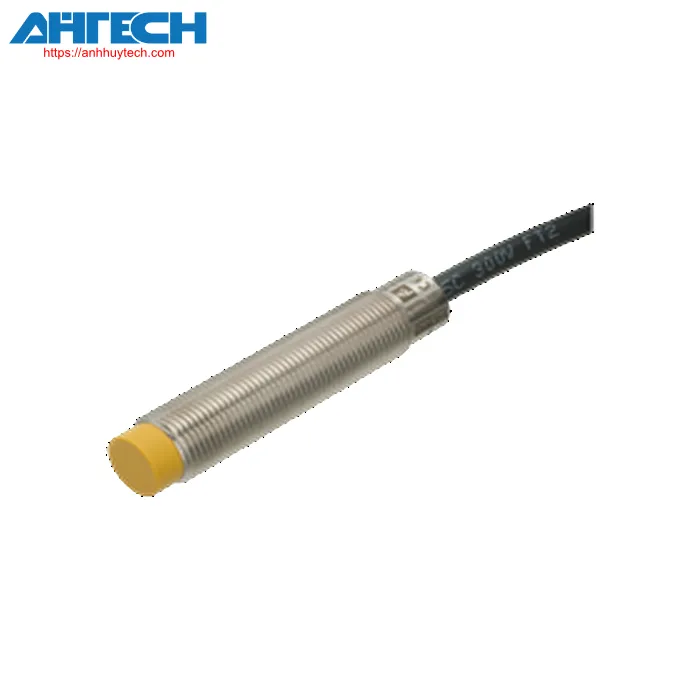

Inductive Sensor NSN4-12GM50-2E2-PUR-S2D2
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NSN4-12GM50-2E2-PUR-S2D2
| Overall specifications | ||
|---|---|---|
| transition function | 2 x normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 4 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 3.24 mm | |
| Actuating component | Reference point in accordance with EN IEC 60947-5-2 (FE360 - ST37K) 12 mm x 12 mm x 1 mm |
|
| diminution factor rAl | 0.55 | |
| diminution factor rCu | 0.5 | |
| diminution factor r304 | 0.9 | |
| diminution factor rBrass | 0.6 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 18 ... 30 V | |
| Nominal functioning voltage | 24 V | |
| commutation frequency | 0 ... 30 Hz | |
| Deadband | typ. 5% | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| Overload capacity | yes | |
| voltage loss | = 3 V at IL (sum of all outputs) maximum 50 mA |
|
| Nominal insulation voltage | 30 V | |
| Operational current | 1 ... 30 mA per output | |
| Non-conducting current | 0 ... 0.5 mA | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | = 300 ms | |
| State indication for switching | LED, yellow | |
| Fault indicator | LED, red | |
| Parameters related to functional safety | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| Performance level (PL) | PL d | |
| Category | Cat. 2 | |
| MTTFd | > 7500 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | min. 60 % | |
| Guaranteed release distance of a PDDB | 6 mm | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Type 1, 2, 3 |
|
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Altitude | = 2000 m above MSL | |
| Mechanical characteristics | ||
| Linkage method | cable PUR , 2 m | |
| cross section of the core | 0.34 mm2 | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP68 / IP69 | |
| Mass | 77 g | |
| Measurements | ||
| Length | 60 mm | |
| Diameter | 12 mm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274101 |
| ECLASS 12.0 | 27274101 |
| ECLASS 11.0 | 27272401 |
| ECLASS 10.0.1 | 27272401 |
| ECLASS 9.0 | 27272401 |
| ECLASS 8.0 | 27272401 |
| ECLASS 5.1 | 27272401 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NSN4-12GM50-2E2-PUR-S2D2
