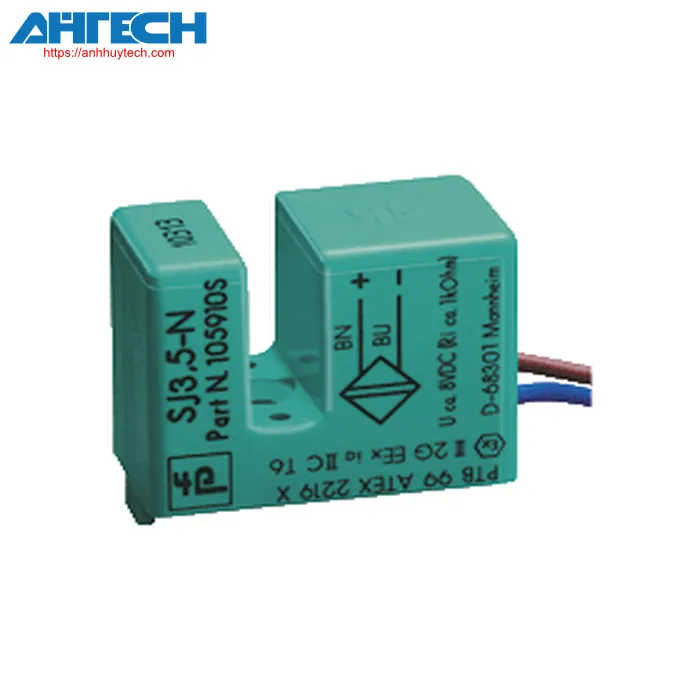

Inductive Sensor Pepperl+Fuchs SJ3,5-N
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of SJ3,5-N
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Slot width | 3.5 mm | |
| Lateral immersion depth | 5 ... 7 mm , typ. 6 mm | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V (Ri approximately 1 kΩ | |
| Operational voltage | 5 ... 25 V | |
| commutation frequency | 0 ... 3000 Hz | |
| Deadband | 0.41 ... 0.6 mm | |
| Compatible with 2:1 technology | yes, reverse polarity protection diode is unnecessary | |
| Current draw | ||
| Measurement plate not found | = 3 mA at nominal voltage | |
| Measuring plate identified | = 1 mA at nominal voltage | |
| Parameters related to functional safety | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| MTTFd | 8415 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Ga | IECEx PTB 11.0091X | |
| Equipment protection rating Gb | IECEx PTB 11.0091X | |
| Equipment protection rating Da | IECEx PTB 11.0091X | |
| Equipment protection rating Mb | IECEx PTB 11.0091X | |
| ATEX certification | ||
| Equipment protection rating Ga | PTB 99 ATEX 2219 X | |
| Equipment protection rating Gb | PTB 99 ATEX 2219 X | |
| Equipment protection rating Da | PTB 99 ATEX 2219 X | |
| UL certification | cULus Certified, Standard Use | |
| Standard location | E87056 | |
| explosive atmosphere | E501628 | |
| Control schematic | 116-0453 | |
| CCC certification | ||
| explosive atmosphere | 2020322315002306 | |
| NEPSI certification | ||
| NEPSI accreditation | GYJ16.1391X | |
| TIIS certification | upon request | |
| KCC certification | ||
| explosive atmosphere | 13-AV4BO-0353X | |
| Marine certification | DNVGL TAA00001A5 | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) | |
| Mechanical characteristics | ||
| Linkage method | flexible LiY wires | |
| Housing material | PBT | |
| Protection等级 | IP67 | |
| Cable | ||
| Cable thickness | 1.1 mm ± 0.1 mm | |
| Curvature radius | > 10 times cable diameter | |
| Material | PVC | |
| cross section of the core | 0.14 mm2 | |
| Length | 500 mm | |
| Measurements | ||
| Height | 15 mm | |
| Width | 10 mm | |
| Length | 19.5 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for SJ3,5-N
