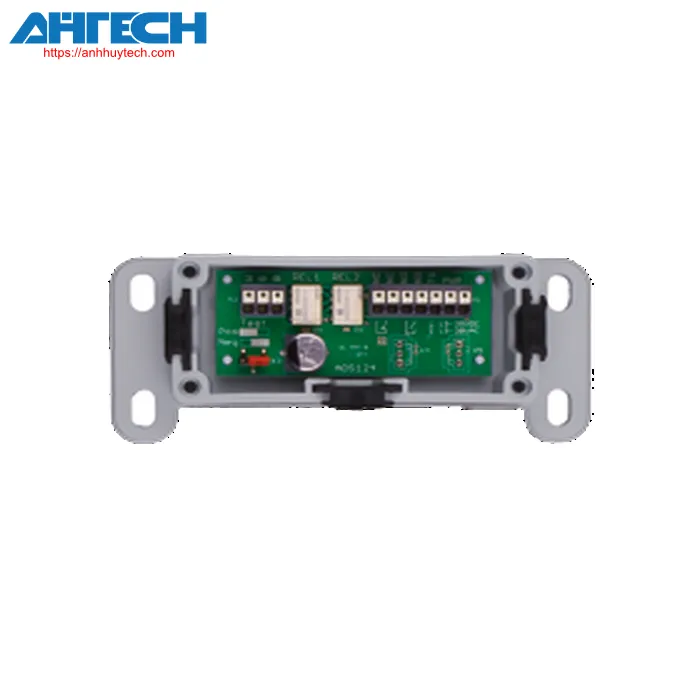

Photoelectric Sensor Pepperl+Fuchs 124

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Safety regulation module

Overall specifications
Marking		CE
Indicators/operation controls
operation indicator		two yellow indicator LEDs when both light up, the NO is closed and the NC is open
Electrical parameters
Operational voltage		19 ... 35 V DC 19 ... 30 V AC
Energy usage		< 1 VA
Input
Verification input		Circuit with voltage > 6 V, pull-down 57 kΩ, can be inverted using X3 jumper
Output
Output configuration		relay with changeover contact
Switching voltage level		50 V AC/DC
Switching capacity		0.6 A
Energized/De-energized time delay		typ. 100 ms
reaction time		= 20 ms
Compliance
Safety functionality		ISO 13849-1 Cat. 2 when utilizing the test input ISO 13849-1 Category 1 without assessment
Product specification		EN 61000-6-2, EN 61000-6-3
Environmental conditions
Ambient temperature		-20 ... 55 °C (-4 ... 131 °F)
Ambient storage temperature		-20 ... 55 °C (-4 ... 131 °F)
Mechanical characteristics
Protection等级		IP65
Linkage		screw terminals, conductor cross section 2 x 1 mm²
Material
	Housing	PC (polycarbonate)
Mass		105 g
Measurements
	Height	52 mm
	Width	123 mm
	Depth	45 mm
