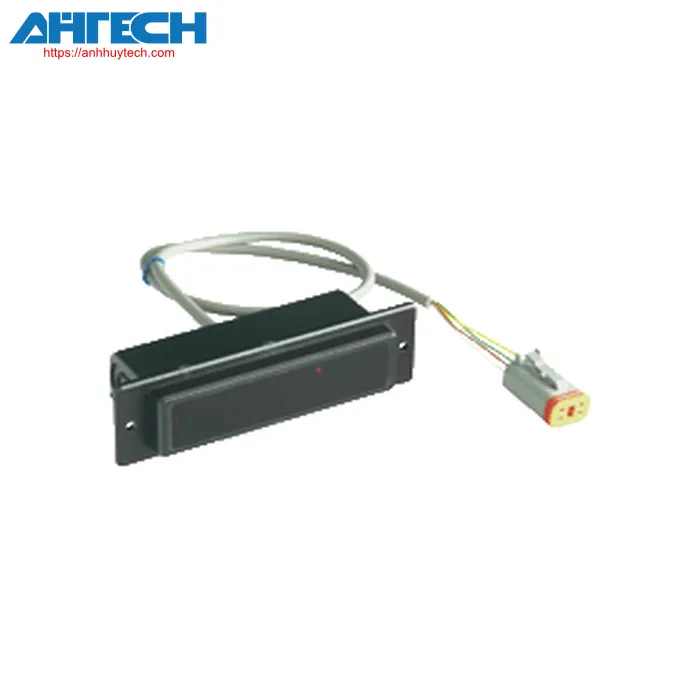

Photoelectric Sensor Pepperl+Fuchs AIR30/32-UP-2493
Pepperl+Fuchs Categories
Photoelectric Sensor AIR30/32-UP-2493
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of AIR30/32-UP-2493
| Item Specification | ||
|---|---|---|
| Mono-beam optical scanners featuring a tightly focused light beam for the supervision of primary and secondary closing edges | ||
| Overall specifications | ||
|---|---|---|
| Minimum detection range | 0 ... 885 mm preset | |
| Reference point | material with reflectance greater than 6% | |
| illumination source | IRED | |
| Illumination type | modulated infrared light | |
| Emitter frequency | 1800 Hz | |
| Operation mode | Background assessment | |
| Size of the illumination spot | 22 x 22 mm at a sensing range of 885 mm | |
| angle of opening | approx. 1.4 ° | |
| Included accessories | Swivel mount, Mounting clip | |
| Parameters related to functional safety | ||
| MTTFd | 1050 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 90 % | |
| Electrical parameters | ||
| Operational voltage | 24 V DC | |
| No-load input current | 100 mA | |
| Input | ||
| Verification input | emitter shutdown at +UB | |
| Output | ||
| Type of switch | light-on (output is active when background is present and no person is in the detection area) | |
| Output signal | 1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector | |
| Switching voltage level | max: 31.2 V DC | |
| Switching capacity | = 0.2 A | |
| reaction time | 50 ms | |
| Compliance with standards | ||
| Standards | EN 60947-5-2 | |
| Standards 2 | EN 61000-6-2 excluding EN 61000-4-5, EN 61000-4-11 | |
| Standards 3 | EN 61000-6-3 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Ambient storage temperature | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP52 | |
| Linkage | Connecting cable 500 mm equipped with a 4-pin socket connector (Deutsch) | |
| Material | ||
| Housing | plastic | |
| optical surface | Luran® | |
| Mass | 50 g | |
| Measurements | ||
| Height | 45 mm | |
| Width | 102 mm | |
| Depth | 32 mm | |
Download Specification for AIR30/32-UP-2493
Download PDF
