Photoelectric Sensor Pepperl+Fuchs DoorScan-I

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification

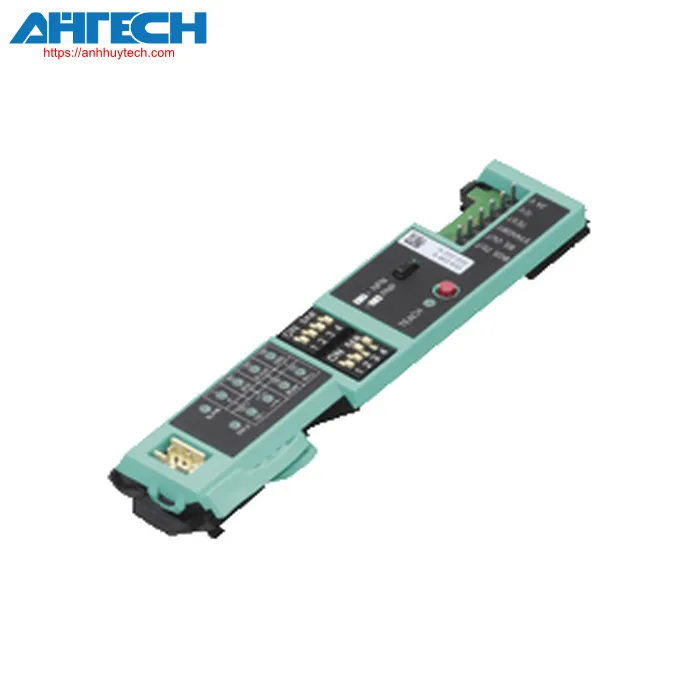

sensing unit for replacement/extension designed for installation in the DoorScan^® and TopScan sensor profiles, multifunction interface module

Overall specifications
Operation mode		Background assessment
Parameters related to functional safety
Safety Integrity Level (SIL)		SIL 2
Performance level (PL)		PL d
Category		Cat. 2
MTTF_d		2716 a
task duration (T_M)		20 a
Diagnostic Range (DC)		90 %
Indicators/operation controls
operation indicator		Connection point: Red LED: detection, functioning margin, error code Yellow LED: teach status Green indicator LED: no status Green indicator LED: DIP switch indicator
Electrical parameters
Operational voltage		24 V DC +/- 20 %
No-load input current		30 mA
Input
Verification input		high state = 15 V low state = 2 V
Control interface		Standby active at U = 11 V DC at 30 V DC
Output
Type of switch		light-on
Output signal		configurable NPN or PNP, protected against short circuits
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA
reaction time		= 52 ms = 200 ms in boost functioning mode
Compliance
Safety functionality		ISO 13849-1 ; EN 61508 part1-4
Product specification		EN 12978
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Mechanical characteristics
mounting height		max. 3500 mm
Protection等级		IP54 (upon installation)
Linkage		connector strip, 6-pin
Mass		approx. 30 g
Measurements
	Height	24 mm
	Depth	31 mm
	Length	126 mm
