Photoelectric Sensor Pepperl+Fuchs GL3-U/153

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification

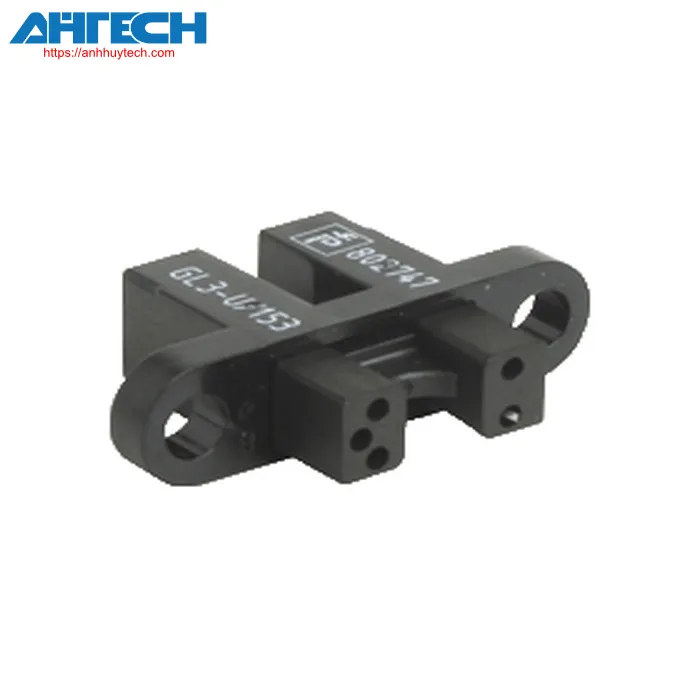

Miniature photoelectric slot sensor utilized for detecting small components, equipped with a U-shaped housing design, 3.15 mm slot dimension, infrared illumination, NPN outputs, and a permanent cable

Overall specifications
illumination source		IRED , 940 nm
Illumination type		IRED
Slot width		3.15 mm
Slot depth		3.15 mm
Ambient light threshold		1000 Lux
Parameters related to functional safety
MTTF_d		44332 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Electrical parameters
Operational voltage		5 ... 30 V DC
Ripple		10 %
Emitter
	Illumination type	940 nm IR light
	Anode voltage	< 1.6 V
	Maximum forward voltage	30 V
	Direction current	50 mA
	Negative voltage	5 V
	Reverse polarity current	= 10 µA
	Energy loss	75 mW
Receiver
	Output configuration	NPN
	C-E breakdown voltage	30 V
	E-C surge voltage	5 V
	Collector reverse current	< 1 µA
	Collector DC power	20 mA
	Energy loss	75 mW
Output
Output signal		1 NPN , photo transistor
Switching voltage level		max. 30 V DC
Switching capacity		20 mA
reaction time		25 µs
Certifications and approvals
EAC compliance		TR CU 020/2011
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 85 °C (-4 ... 185 °F)
Ambient storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical characteristics
cross section of the core		4 x 0.08 mm²
Protection等级		IP30
Linkage		610 mm, PVC insulated cable, Single-color wires
Material
	Housing	PC
Mass		7 g
Measurements
	Height	15.9 mm
	Width	6.35 mm
	Depth	24.7 mm
