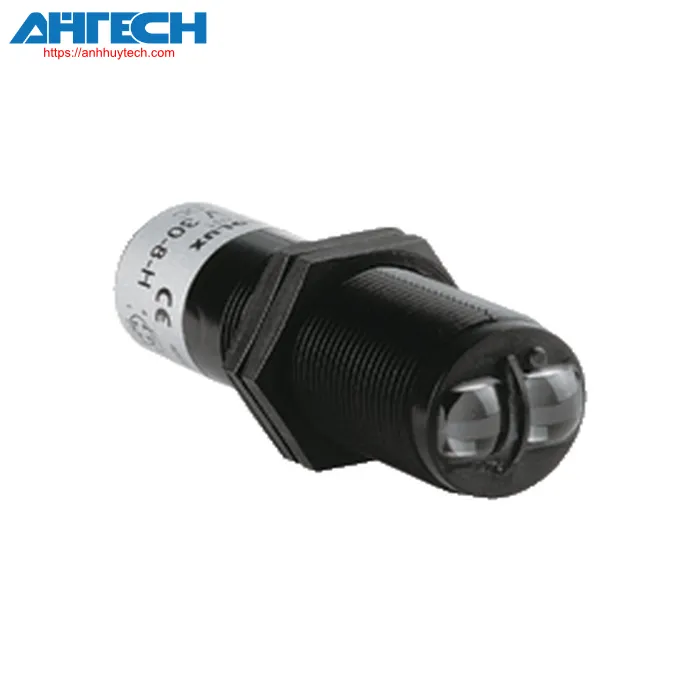

Photoelectric Sensor Pepperl+Fuchs GLV30-8-H-150-IR/47/73c

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Background elimination sensor

Overall specifications
Detection distance		20 ... 150 mm
Minimum detection range		0 ... 145 mm
Maximum detection range		0 ... 170 mm
Background elimination		begins at 180 mm
illumination source		IRED
Illumination type		modulated infrared light
Black-white contrast (6 %/90 %)		< 10 mm
Size of the illumination spot		4 mm at a separation of 150 mm
angle of opening		± 1 °
Ambient light threshold		30000 Lux
Indicators/operation controls
operation indicator		Yellow indicator LED, illuminates when the receiver is inactive
Electrical parameters
Operational voltage		24 V DC ± 20 %
Ripple		10 %
No-load input current		30 mA
Output
Type of switch		light/dark on
Output signal		2 PNP, supplementary, with short-circuit protection and reverse polarity protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 200 mA
commutation frequency		35 Hz
reaction time		10 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Class 2 Power Supply, Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-20 ... 75 °C (-4 ... 167 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		M12 x 1 plastic connector, 4-pin
Material
	Housing	ABS
	optical surface	polymeric lenses
Mass		approx. 70 g
Measurements
	Length	89 mm
	Diameter	30 mm
