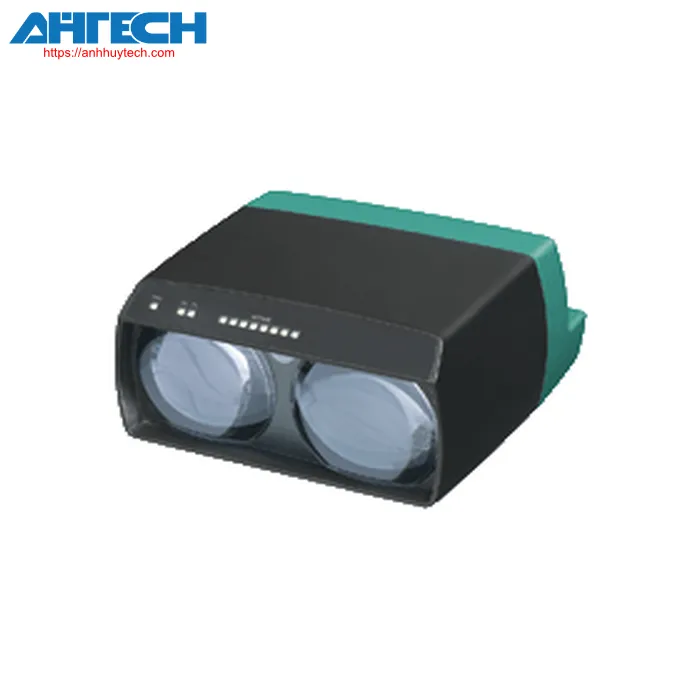

Photoelectric Sensor Pepperl+Fuchs LS610-DA-IBS/F1/35/146

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Optical data connector for INTERBUS, 240 m detection range, infrared light, M12 connector, low temperature design

Overall specifications
Operational sensing range		0 ... 240 m
detection range threshold		260 m
Illumination type		modulated infrared light
Size of the illumination spot		2 m at a range of 100 m
angle of opening		1.1 °
Ambient light threshold		> 10000 Lux
Parameters related to functional safety
MTTF_d		260 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Data transfer indicator		LED green: emitter Yellow indicator LED: detector
operation indicator		alignment aid: flashing front red LED Signal strength (8 LED: Red, yellow, green)
Electrical parameters
Operational voltage		18 ... 30 V DC
No-load input current		200 mA
Data transmission rate		0 ... 2 MBit/s
Operational frequency		F1 = 8.25 MHz
Connection point
Type of interface		RS 422, galvanically insulated
Output
Stability fault indication output		1 PNP (activates with adequate functioning reserve) short-circuit protected, max. 200 mA
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
Certifications		CE, cULus
Environmental conditions
Ambient temperature		-30 ... 50 °C (-22 ... 122 °F), suitable for application in dry cold environments
Ambient storage temperature		-30 ... 70 °C (-22 ... 158 °F)
Mechanical characteristics
Protection等级		IP65
Linkage		4-pin M12x1 connector, standard (power) 5-pin, M12x1 connector, B-coded (Remote Bus Input), 5-pin, M12x1 socket, B-coded (Remote Bus Out)
Material
	Housing	ABS / PC
	optical surface	plastic
Mass		700 g
Measurements
	Height	90 mm
	Width	170 mm
	Length	171 mm
