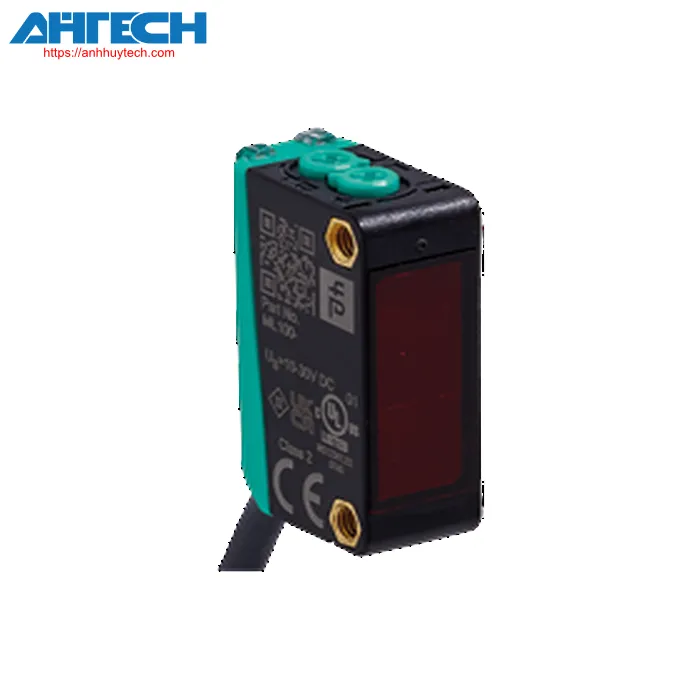

Photoelectric Sensor ML100-8-H-350-RT-9090/103/115a

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML100-8-H-350-RT-9090/103/115a

Classifications

Item Specification
Triangulation sensor featuring background suppression, 350 mm adjustable detection range, red light, light/dark on, PNP output, permanent cable with M8 plug

Overall specifications
Detection distance		5 ... 350 mm
Minimum detection range		5 ... 30 mm
Maximum detection range		5 ... 350 mm
modification range		30 ... 350 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
polarizing filter		no
Black-white contrast (6 %/90 %)		< 18 % at 350 mm
Size of the illumination spot		approximately 20 mm at a distance of 350 mm
angle of opening		approx. 4 °
optical surface		frontal
Ambient light threshold		EN 60947-5-2:2007+A1:2012
Parameters related to functional safety
MTTF_d		860 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: power activated
operation indicator		Yellow indicator LED: activates when an object is sensed
control components		detection range adjuster
control components		Light-on/dark-on toggle switch
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 20 mA
Output
Type of switch		The sensor's switching type can be modified. The factory default is: light on
Output signal		1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
voltage loss		= 1.5 V DC
commutation frequency		500 Hz
reaction time		1 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		cULus approved, Class 2 power supply or listed Power Supply featuring a limited voltage output with (possibly integrated) fuse (max. 3.3 A per UL248), Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		700 mm cable, stationary installation with M8 coupling, 4-pole
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 20 g
Fastening torque for securing screws		0.6 Nm
Measurements
	Height	31 mm
	Width	11 mm
	Depth	20 mm
Cable duration		0.7 m
